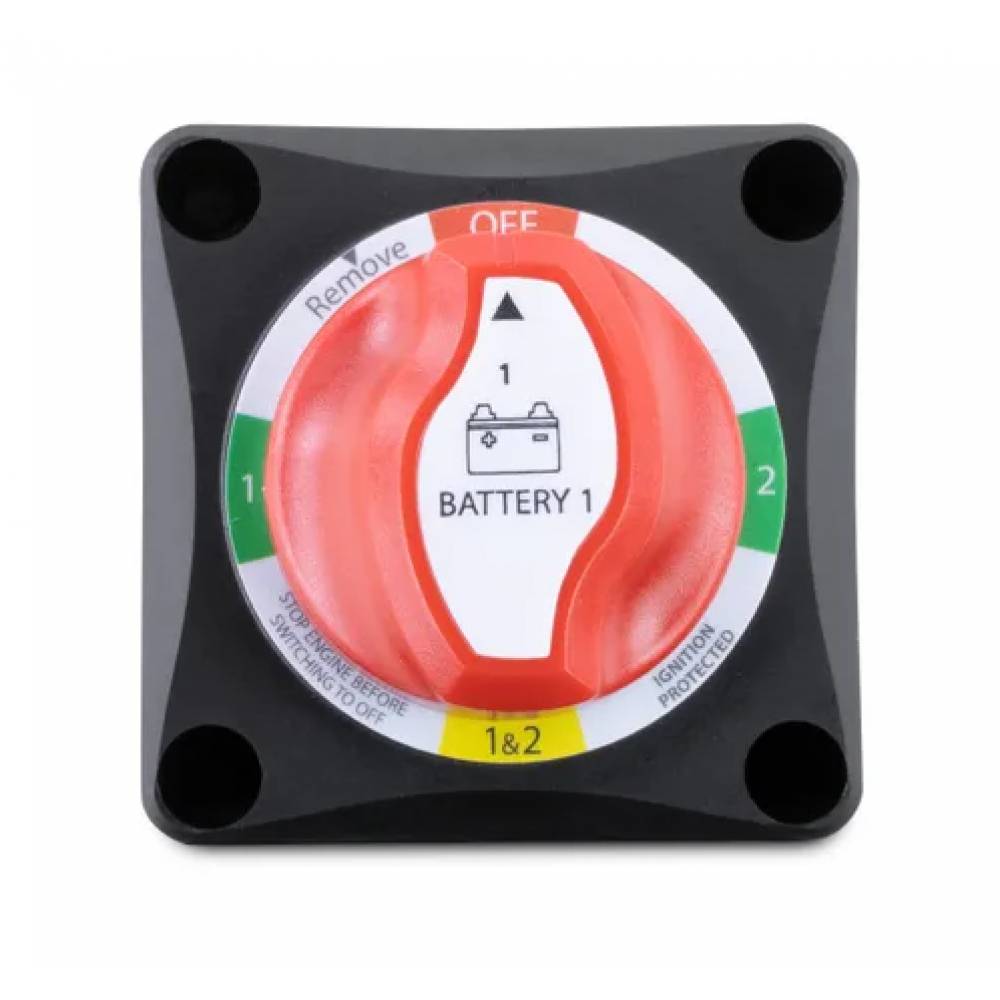

Sierra BS11020 battery switch (1-2-BOTH-OFF).

Features

• Function: 1-2-BOTH-OFF
• Unique ergonomic and aesthetic knob design
• Removable knob for added level of safety and isolation
• Robust glass fiber reinforced nylon enclosure
• Removable windows on all four sides for unobstructed wiring
• Surface or panel mount options provide flexibility during installation
• Includes (4) M4x35 mounting screws
• Meets ignition protection standards (ISO8846/SAE J1171)
• Interchangeable knob labels for easy identification
• CE certified; IP66 rated

Specifications

• Maximum voltage rating: 48VDC
• Stud size: M8
• Cranking rating: (10 Seconds): 1000A
• Intermittent rating: (5 Minutes): 300A
• Continuous rating: 200A
• Battery input: 2
• Switch function: 4
• Battery studs: tin-plated copper
• Stud torque: 120 lb.-in
• Cable size: 4/0 AWG to meet ratings

About Sierra
Sierra provides premium-quality aftermarket replacements for over 6,000 marine parts, tools, and components. Sierra products are engineered to meet or exceed OEM standards, and stand up in harsh marine environments. Every new Sierra part comes with a limited lifetime warranty that covers the useful life of the product against any defects in workmanship and materials.
