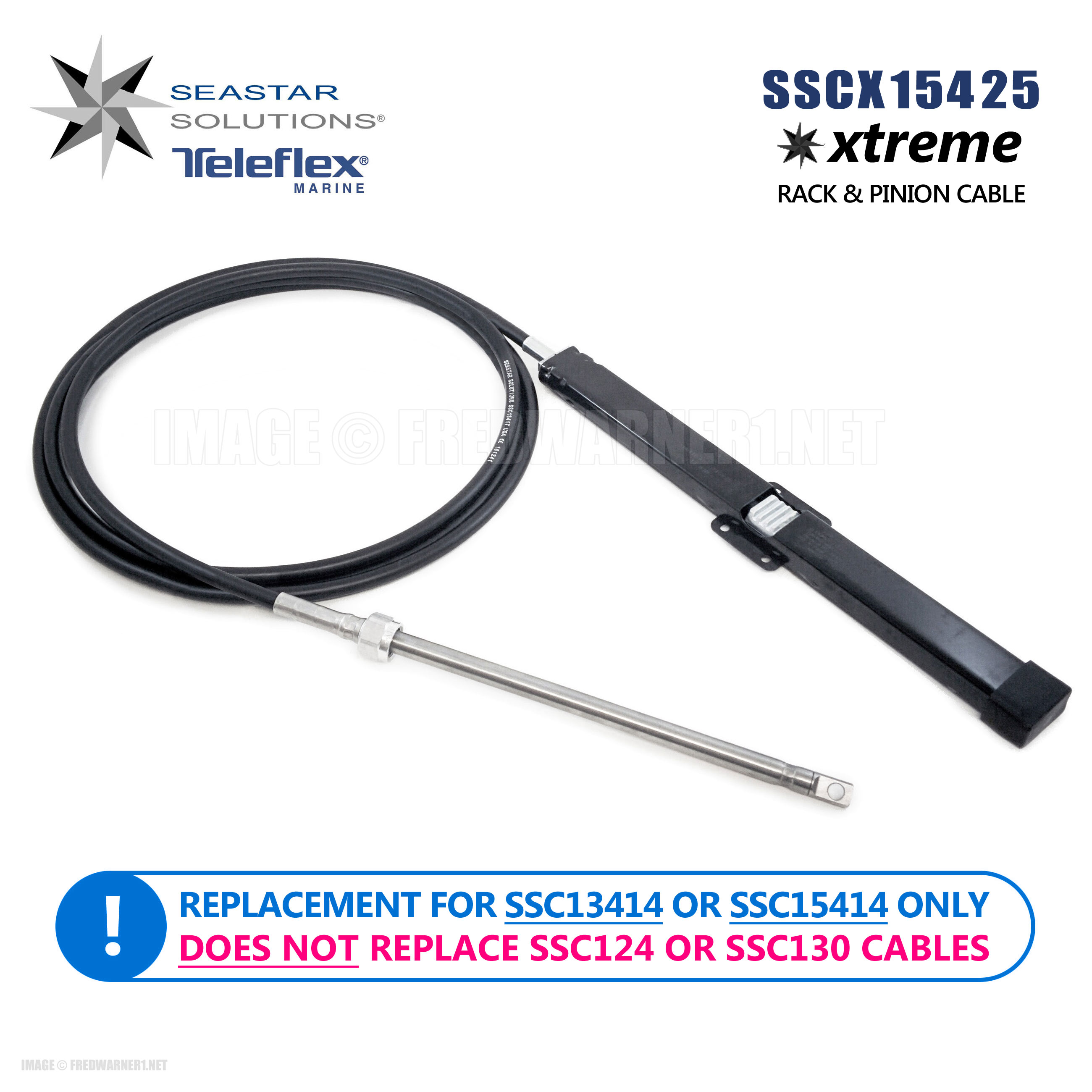

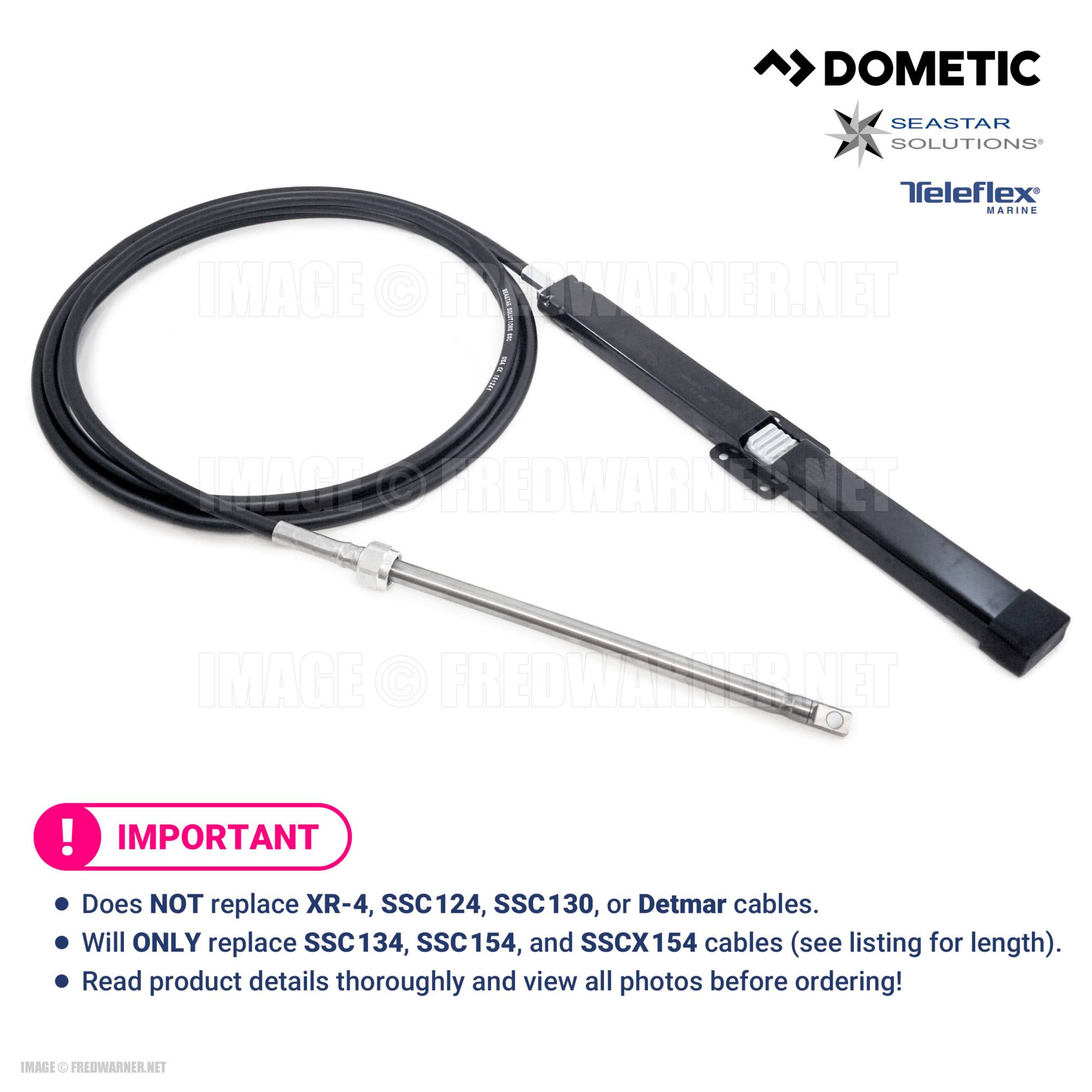

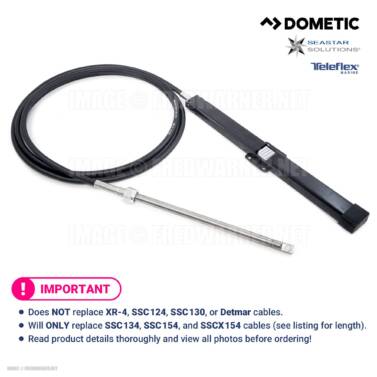

New SeaStar (Teleflex Marine) mechanical rack & pinion XTREME steering cable. Part number SSCX15425. This is the XTREME version of the SSC13425 cable (also called TFXtreme). XTREME cables reduce steering effort, especially at long lengths.

Specifications

• Cable Series: SSCX 154
• Cable Length: 25 Foot (measured from center of rack to end of stainless shaft)

Compatibility

• Compatible with helm and bezel kits SH5210P/SB39526P and SH5230P/SB39544P (NFB).
• The SSCX15425 can directly replace SSC13425 and SSC15425 cables, and be used with SS14125 and SS15125 steering systems.

Important Notes Before Ordering

• Does not replace SSC 124, SSC 130, or Detmar cables.
• For single-cable systems only (not dual-cable).
• On your existing cable, find the part number printed on the cable jacket, and match it to SSC13425 or SSC15425.
• Can't find the part number? Here's how you can determine if this is the correct cable:
  • Rack-to-helm mounting is 1-5/8" by 2-1/4" bolt centers (see photos). Make sure this is an exact match.
  • Make sure distance from center of rack (where gear is visible) to the end of the stainless shaft is 25 foot.
