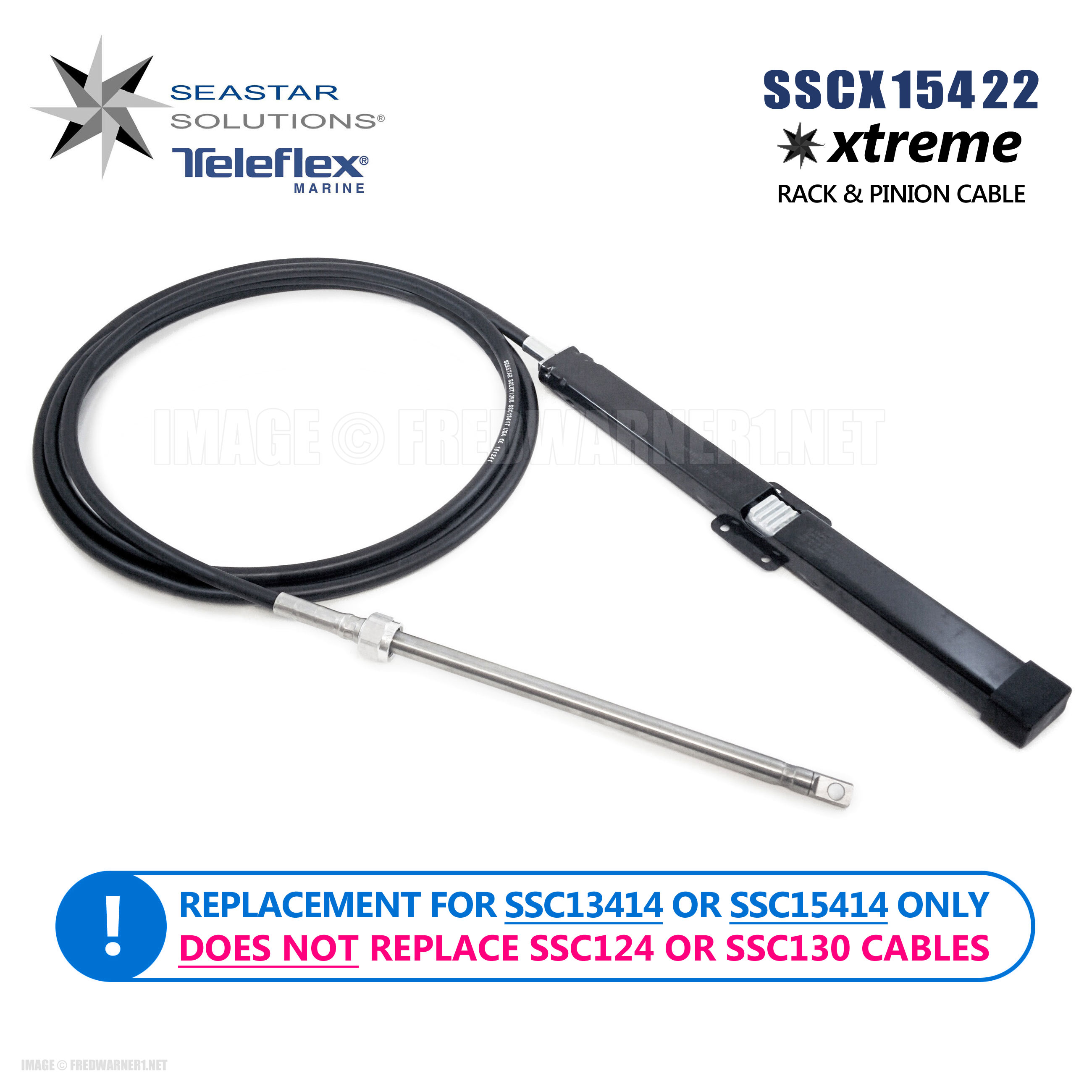

New SeaStar (Teleflex Marine) mechanical rack & pinion XTREME steering cable. Part number SSCX15422. This is the XTREME version of the SSC13422 cable (also called TFXtreme). XTREME cables reduce steering effort, especially at long lengths.

Specifications

• Cable Series: SSCX 154
• Cable Length: 22 Foot (measured from center of rack to end of stainless shaft)

Compatibility

• Compatible with helm and bezel kits SH5210P/SB39526P and SH5230P/SB39544P (NFB).
• The SSCX15422 can directly replace SSC13422 and SSC15422 cables, and be used with SS14122 and SS15122 steering systems.

Important Notes Before Ordering

• Does not replace SSC 124, SSC 130, or Detmar cables.
• For single-cable systems only (not dual-cable).
• On your existing cable, find the part number printed on the cable jacket, and match it to SSC13422 or SSC15422.
• Can't find the part number? Here's how you can determine if this is the correct cable:
  • Rack-to-helm mounting is 1-5/8" by 2-1/4" bolt centers (see photos). Make sure this is an exact match.
  • Make sure distance from center of rack (where gear is visible) to the end of the stainless shaft is 22 foot.
