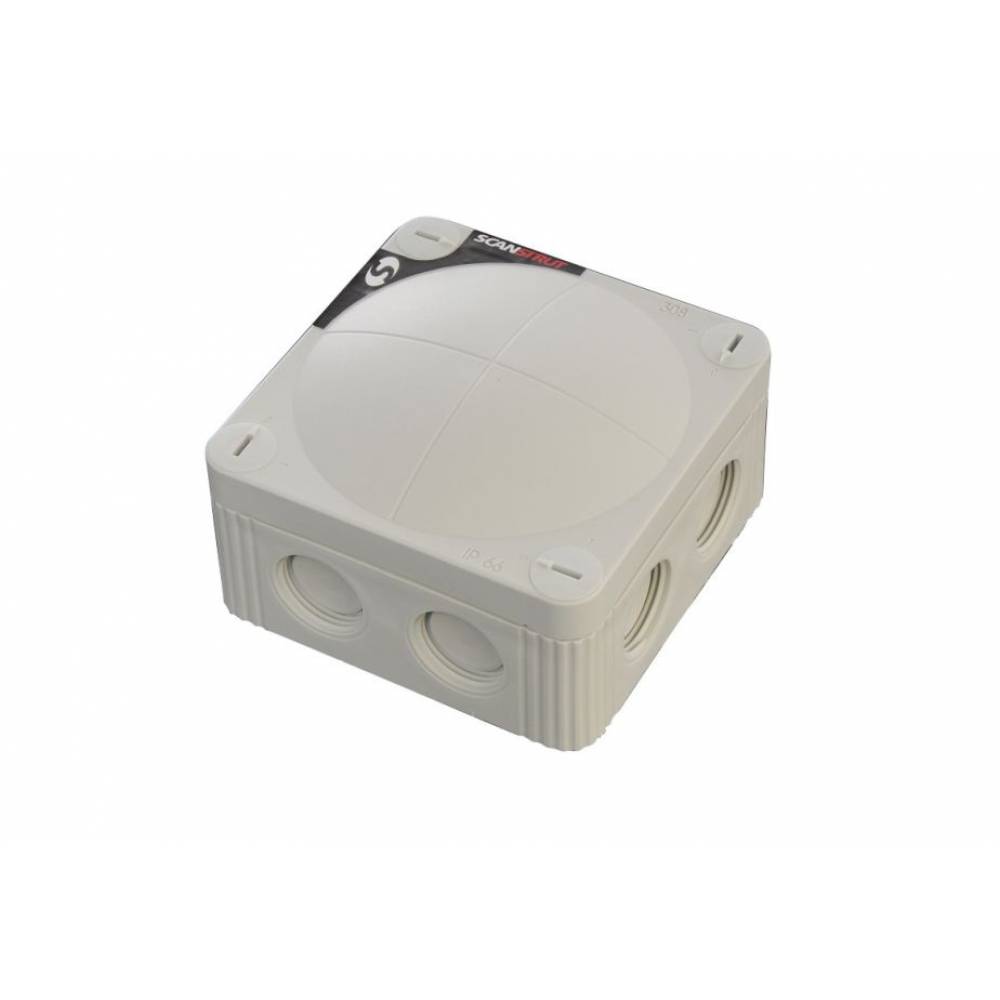

Scanstrut SB-8-10 deluxe junction box is a heavy-duty junction box manufactured from marine grade polypropylene, featuring 10 screw-down terminals. It creates a waterproof connection for multiple electrical cables, and can be block fitted together depending on the number of terminations required. Cables push-fit into the terminals and are secured with a spring leaf retention system that does not damage the wire. Self-tapping screws and a bracket are included for quick and easy installation. Perfect for when you need to create a waterproof connection for multiple electrical cables, and suitable for areas such as lockers, lazarettes, and tender bays.

Features

• Heavy-duty junction box manufactured from marine grade polypropylene
• 10 screw-down terminals
• Terminal blocks can be individually fitted or blocked together
• Terminal blocks are secured, reducing risk of loose connections
• Cables push-fit into terminals and are secured with a spring leaf retention system without wire damage
• Terminal can be removed for easy fitting of cables
• Terminal securely clips into the base of the box

Specifications

• Dimensions: 85mm x 85mm x 50mm (3.35" x 3.35" x 2")
• Supplied with 10 modular terminal blocks offering 10 terminations
• 600V, 20A
• Wire gauge: 28-12 gauge (0.08mm-3.3mm)
• Includes self-tapping screws and installation bracket

Additional SB-2G cable seals required for IP67 installation.
