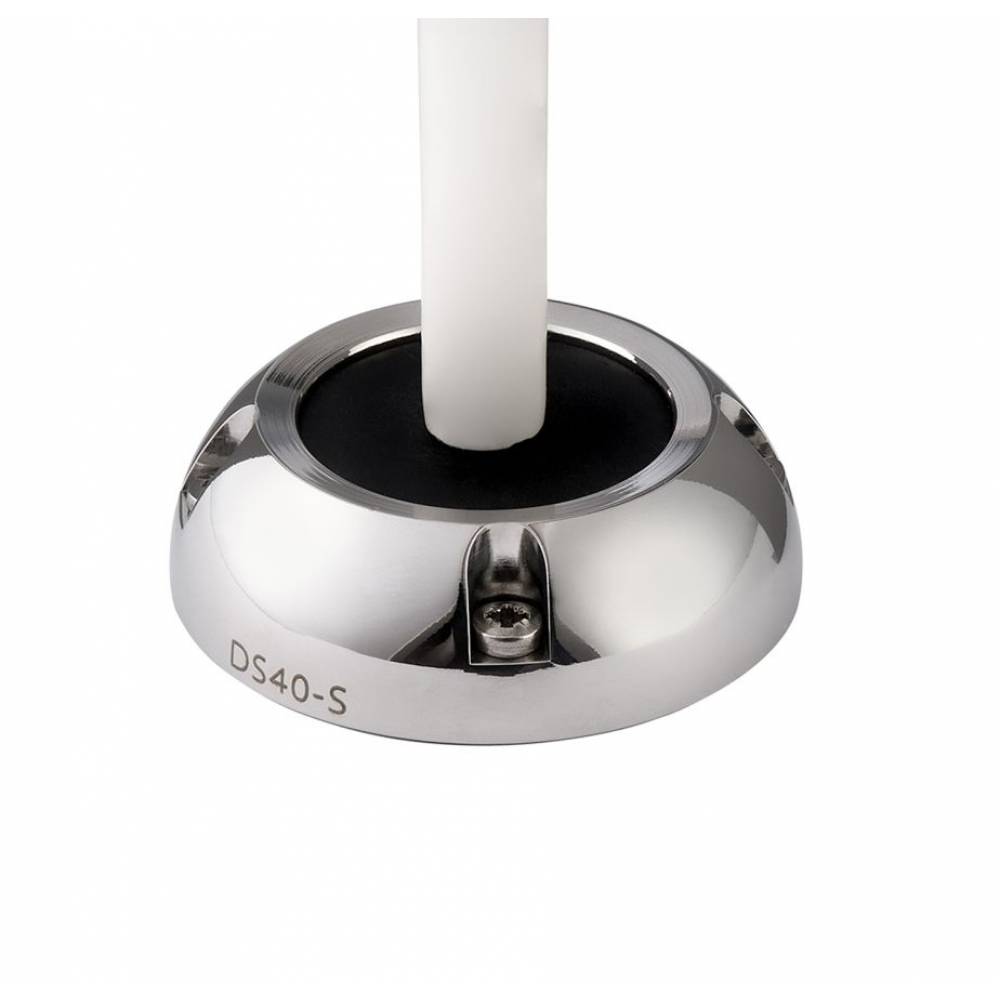

Scanstrut DS40-S IP68 vertical entry large stainless steel cable seal for cables from 12-15mm (0.47"-0.59"), connectors up to 30mm (1.57"). Aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make for an easy assembly. Tapered bung forms a 100% waterproof, watertight, closed-cell base seal. Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible. The split-seal option does not require connector removal during install. The outer dome provides an additional water shield.

Features

• Tapered bung forms a 100% waterproof, watertight seal
• Pre-drilled and blank inner seals to make your installation as easy as possible
• Captive nuts allow reliable repeat installations
• Split-seal option prevents requirement for connector to be removed during install
• Aesthetic dome-shaped profile provides a stronger, impact-resistant design
• Outer dome provides additional water shield

Specifications

• Cables 12-15mm
• Connectors up to 40mm
• IP68 tested and approved
