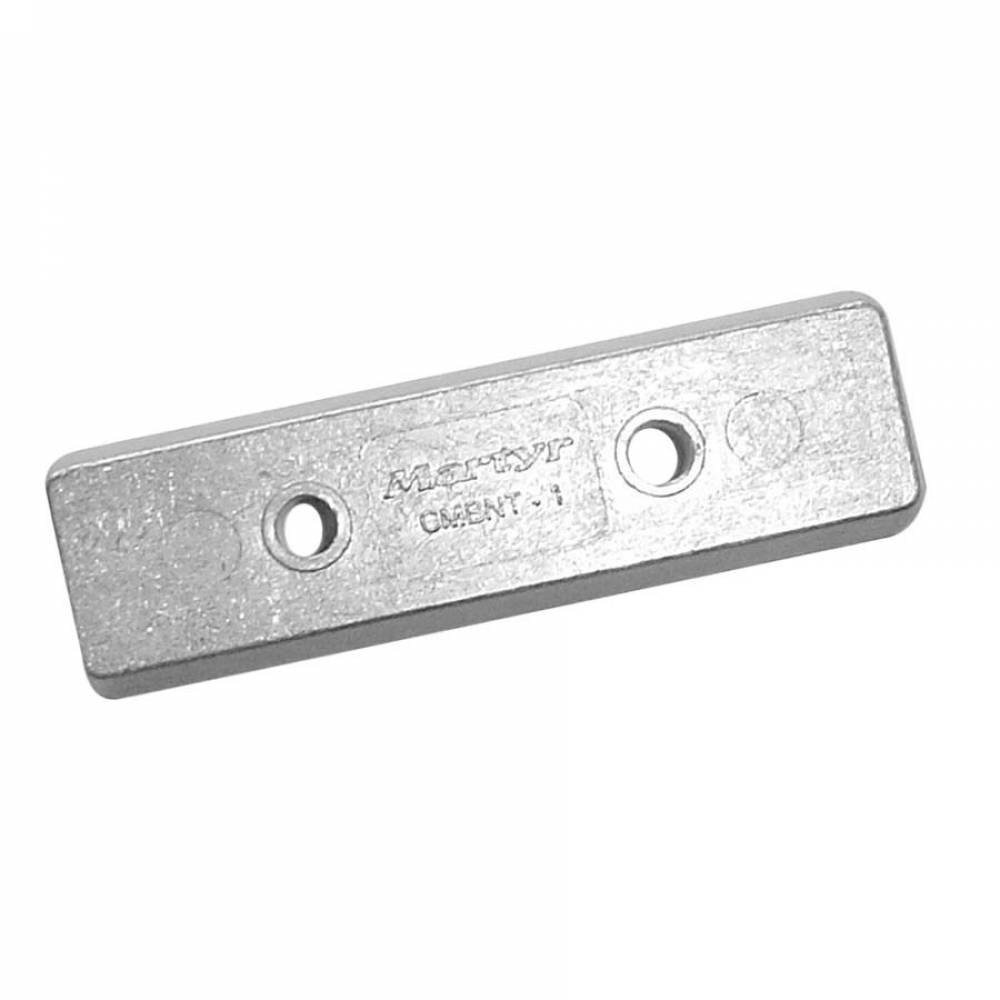

New Martyr Anodes CMBNT1AA (Aluminum anode) for Bennett trim tab.

• Anode mounts to existing holes in trim tab, where the actuator mounts to the plane.
• One anode is included. If you need both, look for the full kit part number CMBNT1AKITA.
• The bolts holding the actuator to the plane must be removed and the zinc installed using the same bolt holes with longer 1/4-20 x 1-1/4" bolts (not included).

Size (see photos for dimensions):
Length (L): 3.78"
Width (W): 1.1"
Height (H): 0.57"
Distance (D): 1.5"
Inside Diameter (ID): 0.26"

Aluminum Marine anodes are used for protection in freshwater, brackish water and saltwater applications. Canada Metal aluminum anodes protect at least 5% better, last 50% longer, and weigh 50% less than traditional zinc anodes. They also contain 0% Cadmium, a toxic material found in traditional zinc anodes. Alloy is designed to meet or exceed US Military Specification (Mil-A-24779(SH)).
