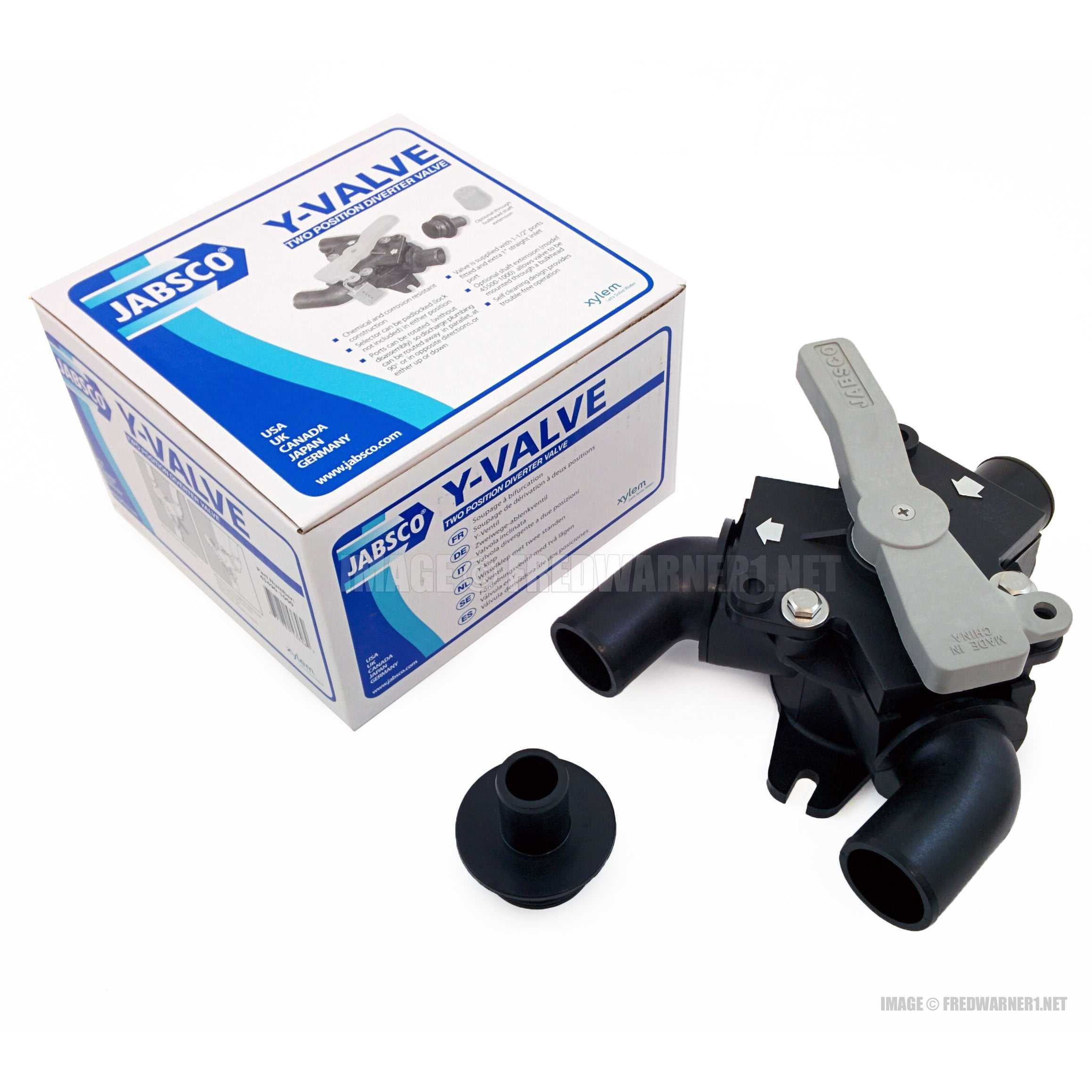

New Jabsco Y-Valve. Part number 45490-1000. This is a two position diverter valve designed to provide flexibility of onboard waste management by diverting waste either into an onboard holding tank or directly overboard where legal to do so.

Features

• Chemical and corrosion resistant polypropylene and stainless steel construction
• Selector lever can be padlocked (lock not included) and/or sealed in either position
• Ports can be rotated so discharge plumbing can be routed away in parallel, at 90 degree or in opposite directions, or either up or down without disassembly
• Valve is supplied with both 1-1/2" (38 mm) ports (fitted) and extra 1" (25 mm) straight inlet port
• Optional shaft extension allows valve to be mounted through a bulkhead up to 1-3/4" thick with only the selector handle exposed
• Self-cleaning design provides trouble free operation
• Molded in flow direction indicator arrows
• Easy access to three sturdy mounting feet for quick and simple installation
• Easy access to valve - by removal of just three hex head machine screws, top cover and diverter assembly lift away from the body
