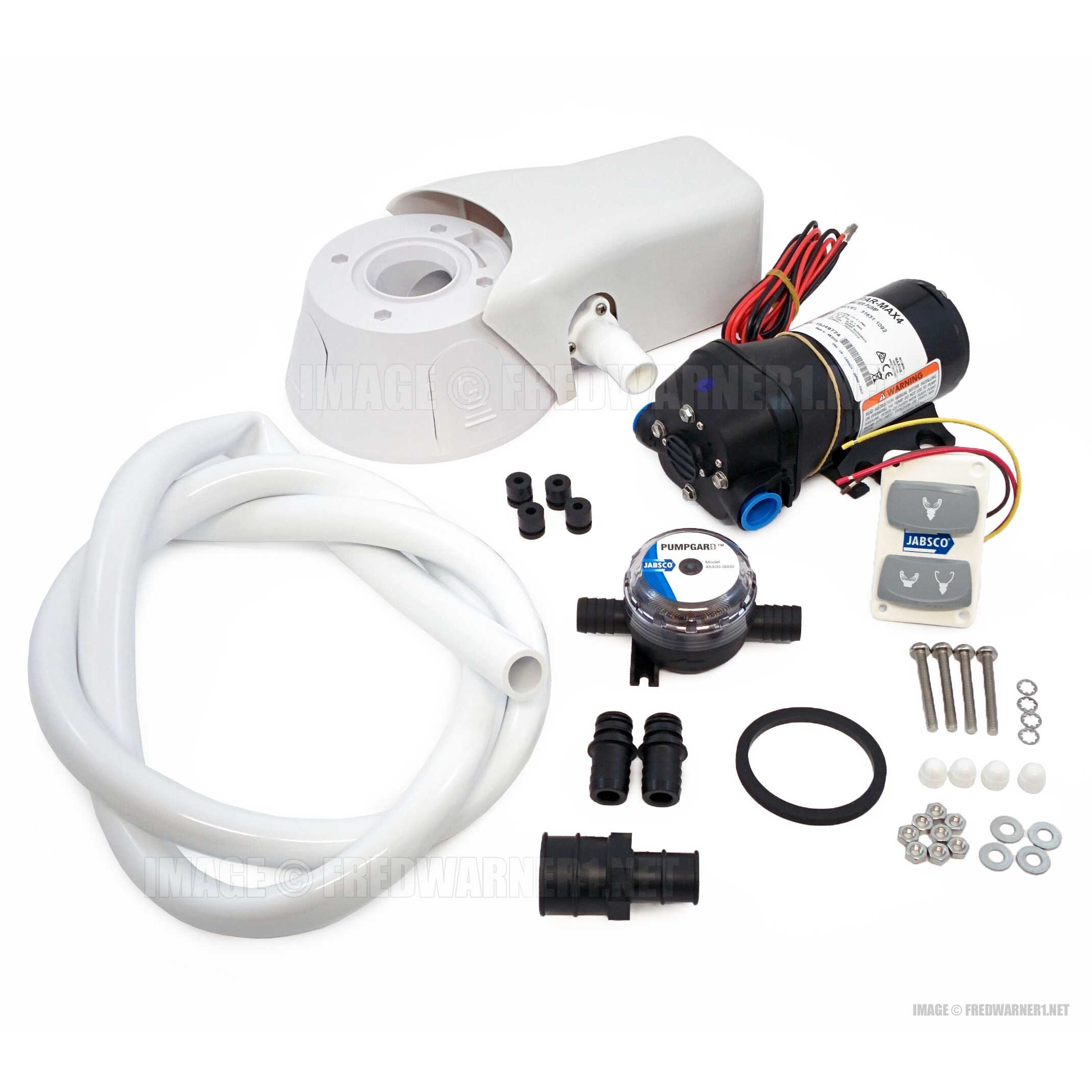

New Jabsco Quiet Flush electric toilet conversion kit. Part number 37255-0092. For 12V DC systems. The Quiet-Flush Toilet Conversion provides both quiet operation and user control of water levels in the toilet bowl. A single large pushbutton switch provides a simple flush mode by activating both the rinse water supply and the macerator discharge pump simultaneously. An additional rocker switch offers independent control of the rinse water supply and discharge pump separately so the bowl water level can be easily raised or lowered by the user. This provides a method of minimizing water use, when desired, as well as a means of raising the water level in the bowl when appropriate for user comfort. It also allows for complete evacuation of the bowl water while underway in rough sea conditions.

Features

• Very quiet flush cycle - like a household toilet
• Converts all Jabsco, Par manual toilets and early electric toilets to the new Quiet-Flush System
• Also converts Groco HC, HE & HF, Raritan PH,Cricket, Compact & Crown, Sealand (Mansfield) 750 to 752 series and all Wilcox Crittenden toilets
• Single button flush actuator - with dual function water level control switch
• Supplied with Par-Max 4 self-priming pump to provide sea water or lake water to rinse the toilet bowl
• High capacity waste macerator and bowl discharge pump

Specifications

• PORTS - PAR-MAX Pump and Toilet, Inlet 3/4" Hose Barb, Outlet 1" Hose Barb
• MOTOR - Pump and Toilet meet U.S.C.G. & SWITCH Regulation 183.410 and ISO 8846 Marine for Ignition Protection.
• WATER CONSUMPTION - 1-2 Quarts (Litres)/Flush
