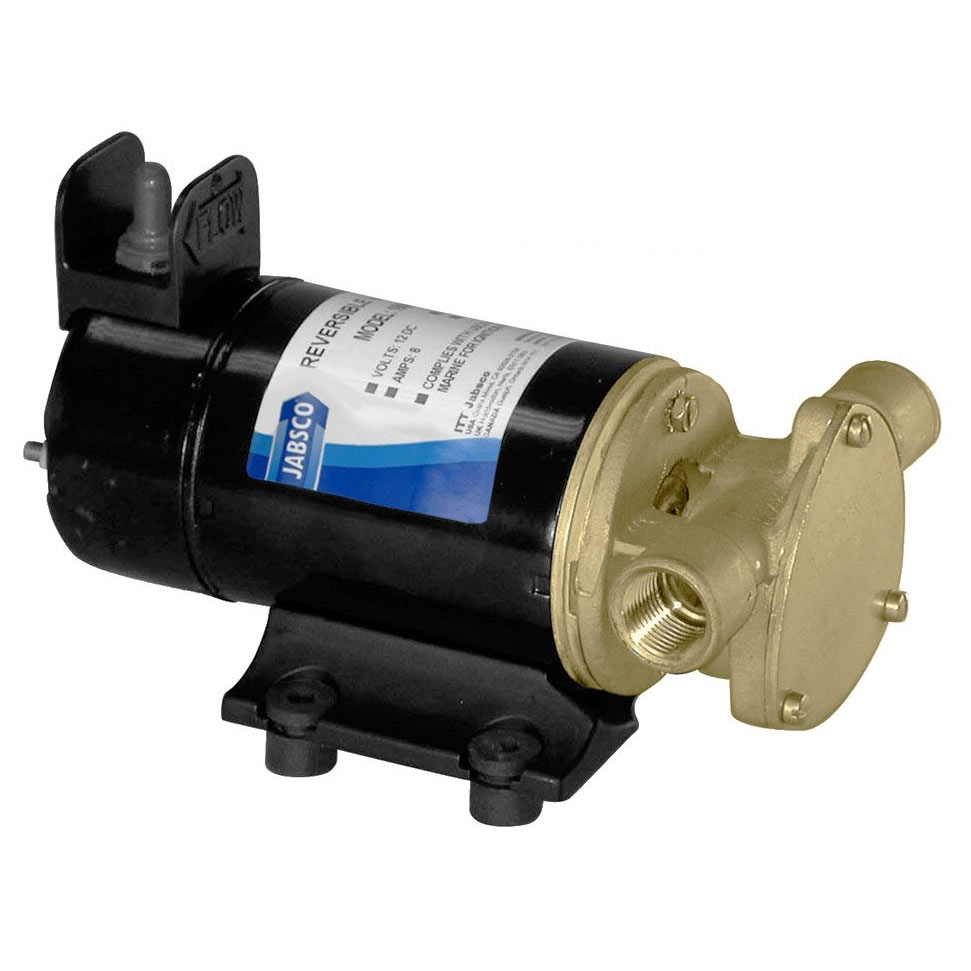

Jabsco 18680-1000 Reversible Rotary Vane Pump 12V DC Marine Boat
By Jabsco
By Jabsco
| Part # | 18680-1000 |
|---|---|
| Warranty | 1 Year |
| Made In | Mexico |
| Shipping Wt | 7 lbs |
$372.19 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
New Jabsco reversible rotary vane pump. Part number 18680-1000.
Specifications
Specifications
- Body: Bronze
- Rotor: Vectra
- Vanes: Ryton
- Seal: Lip Type, Nitrile
- Motor: 12V DC Permanent magnet Type, Intermittent Duty, Fully Enclosed, Stainless Steel Shaft
- Amp draw: 8A
- Fuse size needed: 15A
- Ports: 1/2" NPT Internal Pipe Threads, 1" (25mm) External Hose Barb
- Height: 3-3/8" (86mm)
- Length: 8-5/8" (219mm)
- Width: 4-3/4" (121mm)
- Weight: 5-1/2 lbs (2.5 kg)
| Head Capacity Table | ||||
|---|---|---|---|---|
| PSI | Feet | Meters | GPM | LPM |
| 2.1 | 5 | 1.5 | 5.2 | 19.7 |
| 4.3 | 10 | 3.0 | 5.0 | 18.9 |
| 6.5 | 15 | 4.6 | 4.7 | 17.8 |
| 8.7 | 20 | 6.1 | 4.3 | 16.3 |
$372.19 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Jabsco |
|---|---|
| Made In | Mexico |
| Item Weight | 6.6 lbs |
| Manufacturer | Xylem |
| Manufacturer # | 18680-1000 |
| Model | Jabsco 18680-1000 |
| Part # | 18680-1000 |
| Product Type | Reversible Vane Pump |
| Shipping Dims | 10" x 7" x 6" |
| Shipping Wt | 7 lbs |
| UPC | 671880534680 |
| Warranty | 1 Year |
