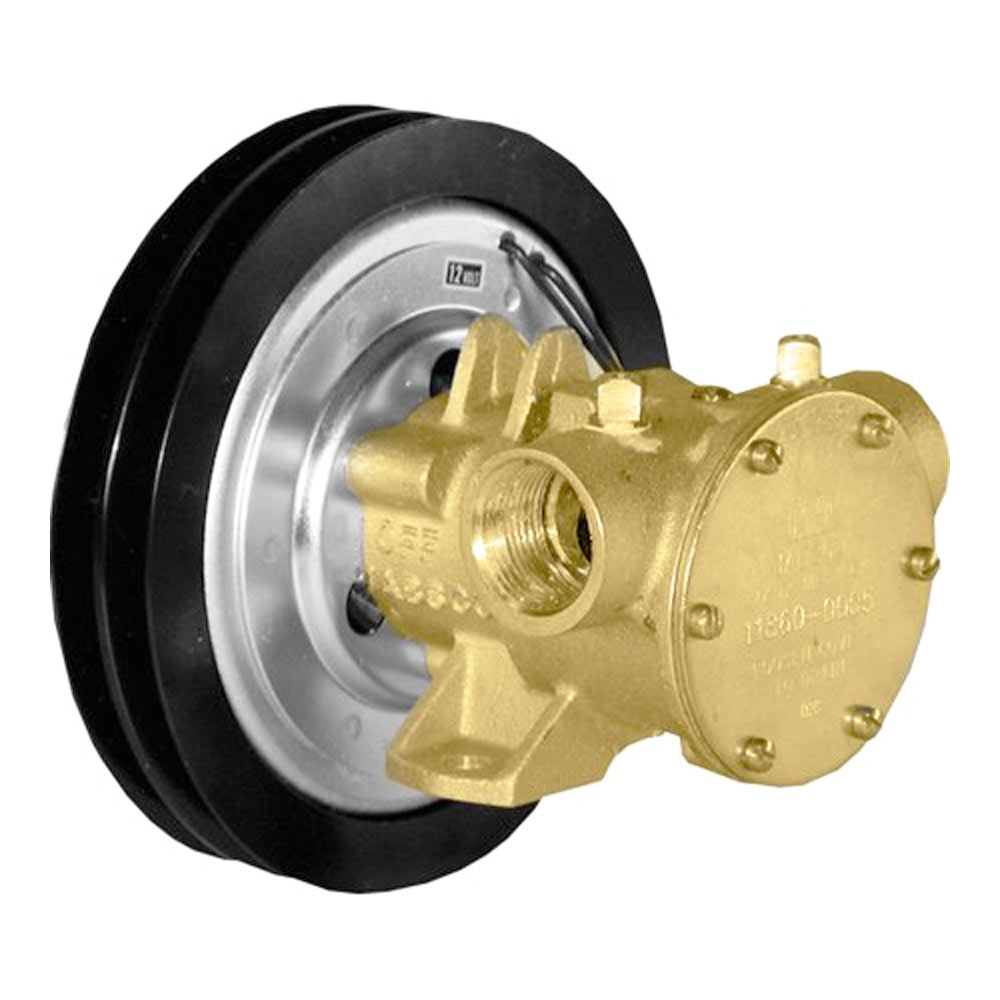

Jabsco 11860-0005 Self-Priming Electro-Magnetic Clutch Pump 12V 2-A Marine
By Jabsco
By Jabsco
| Part # | 11860-0005 |
|---|---|
| Warranty | 1 Year |
| Made In | Mexico |
| Shipping Wt | 17 lbs |
$918.20 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Jabsco self-priming electro-magnetic clutch pump. Part number 11860-0005.
Features
Common Applications
MARINE:
Pumping bilges, Washdowns, Circulating water in bait tanks, Utility dock-side pump.
INDUSTRIAL:
Circulating and transferring, Velocitymixing, Pumping machine tool coolants, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Various acids, Tanning Liquors, Glycerine, Brine, etc.
FARMING:
Pumping water stock, Pumping water from shallow wells and cisterns.
PLUMBING AND HOME EMERGENCY USE:
Pumping out flooded basements, Cesspools, Sumps, Water heaters and water closets, Drains and sinks, Draining fishponds and pools.
PUBLIC UTILITIES AND MUNICIPALITIES:
Under the hood mounting on service trucks for draining meter boxes, manholes, excavations; For pollution control and watering for dust control.
Installation
Pump may be mounted in any position. Intake and discharge ports are determined by the direction of shaft rotation (refer to dimensional drawing). Before installing, energize clutch and turn pump shaft in direction of shaft rotation. Drive pump with two "A" size belts. Avoid dry-running.
Features
- Body: Bronze
- Impeller: Nitrile
- Shaft: Stainless Steel
- Seal: Carbon-Ceramic, Face Type
- Cam: Brass
- Insert: Brass
- Ports: 1" NPT Internal
- Voltage: 12V
- Amp Draw: 4A
- Fuse Size: 7A
- Belt: 2-A
- Bearings: Shielded Ball Bearings
- Weight: 15 lb (6.8 kg) Approx.
Common Applications
MARINE:
Pumping bilges, Washdowns, Circulating water in bait tanks, Utility dock-side pump.
INDUSTRIAL:
Circulating and transferring, Velocitymixing, Pumping machine tool coolants, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Various acids, Tanning Liquors, Glycerine, Brine, etc.
FARMING:
Pumping water stock, Pumping water from shallow wells and cisterns.
PLUMBING AND HOME EMERGENCY USE:
Pumping out flooded basements, Cesspools, Sumps, Water heaters and water closets, Drains and sinks, Draining fishponds and pools.
PUBLIC UTILITIES AND MUNICIPALITIES:
Under the hood mounting on service trucks for draining meter boxes, manholes, excavations; For pollution control and watering for dust control.
Installation
Pump may be mounted in any position. Intake and discharge ports are determined by the direction of shaft rotation (refer to dimensional drawing). Before installing, energize clutch and turn pump shaft in direction of shaft rotation. Drive pump with two "A" size belts. Avoid dry-running.
$918.20 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Jabsco |
|---|---|
| Made In | Mexico |
| Item Weight | 16.1 lbs |
| Manufacturer | Xylem |
| Manufacturer # | 11860-0005 |
| Material | Bronze, Nitrile |
| Model | 11860-0005 |
| Part # | 11860-0005 |
| Product Type | Electro-magnetic Clutch Pump |
| Replaces | 11860-0005 |
| Shipping Dims | 14" x 9" x 8" |
| Shipping Wt | 17 lbs |
| UPC | 671880007962 |
| Warranty | 1 Year |
