Dometic HK4300-4 BayStar marine hydraulic steering system (hoses not included).

Features

• Smooth, 5 turns lock-to-lock
• NoFeedBack (NFB) locks out steering loads
• 3/4" tapered, keyed steering shaft (accepts 3/4" tapered-shaft steering wheels)
• Exceeds NMMA and ABYC standards, and is the OEM choice of many boat manufacturers
• Complete with everything needed to install, including instructions
• Requires 3" (76mm) cut-out hole in dash and minimum 21" (534mm) splashwell width

Compatibility
BayStar can only be used for single-helm, single-outboard boats up to 55 mph and 150 hp. If your outboard is 150-350 hp and up to 60 mph, you'll need one of the SeaStar HK6400 kits. If your boat exceeds 60 mph, is a fast bass boat, is high-performance, or has dual-cable steering, you'll need one of the SeaStar Pro HK7400 kits.

Cylinder (Ram)
BayStar comes with an HC4645-3 compact cylinder, which fits most outboards. Use the application guide in the product images to make sure that is what you need prior to ordering. Some outboards may require an HA4641 or HA4642 pivot plate, or HO5090 spacer kit, for proper fitment (sold separately).

Hoses (Tubes)
This kit does not include hoses or tubing. If you need a kit with a hose kit, please see the kits here. Hose kits come in even foot increments with the part number HO51XX (where XX is the length in feet).

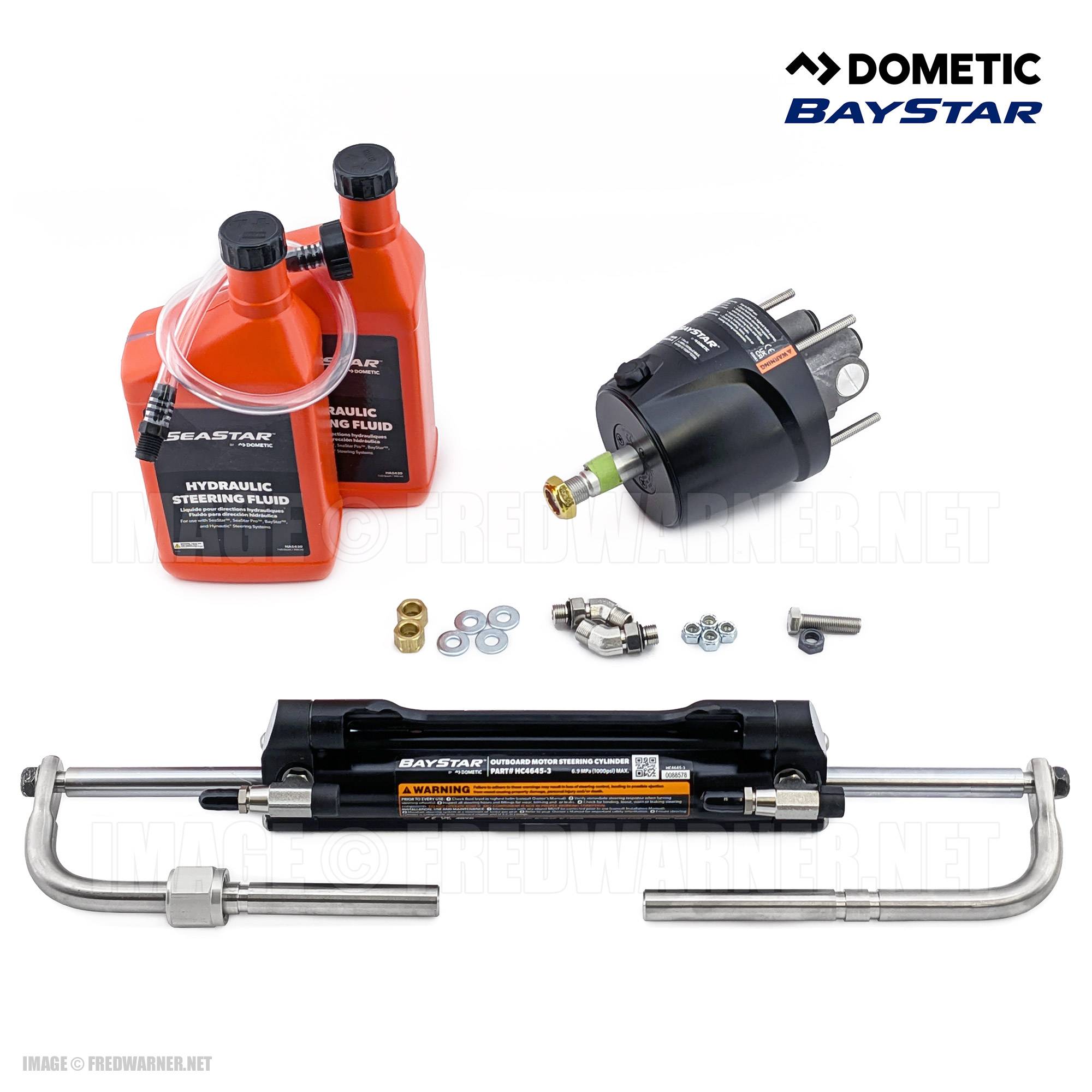

Contents

Description	Part Number	Quantity
Helm	HH4314-4	1
Cylinder	HC4645-3	1
Fluid/Oil	HA5430	2 quarts
Filler Kit	HA5438	1
Instructions		1
