Blue Sea 9011 AC Rotary Switch Off + 2 Position 120V 230V AC 65A Marine Boat
By Blue Sea
By Blue Sea
| Part # | 9011 |
|---|---|
| Warranty | 5 Year |
| Made In | United States |
| Shipping Wt | 2 lbs |
$259.15 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

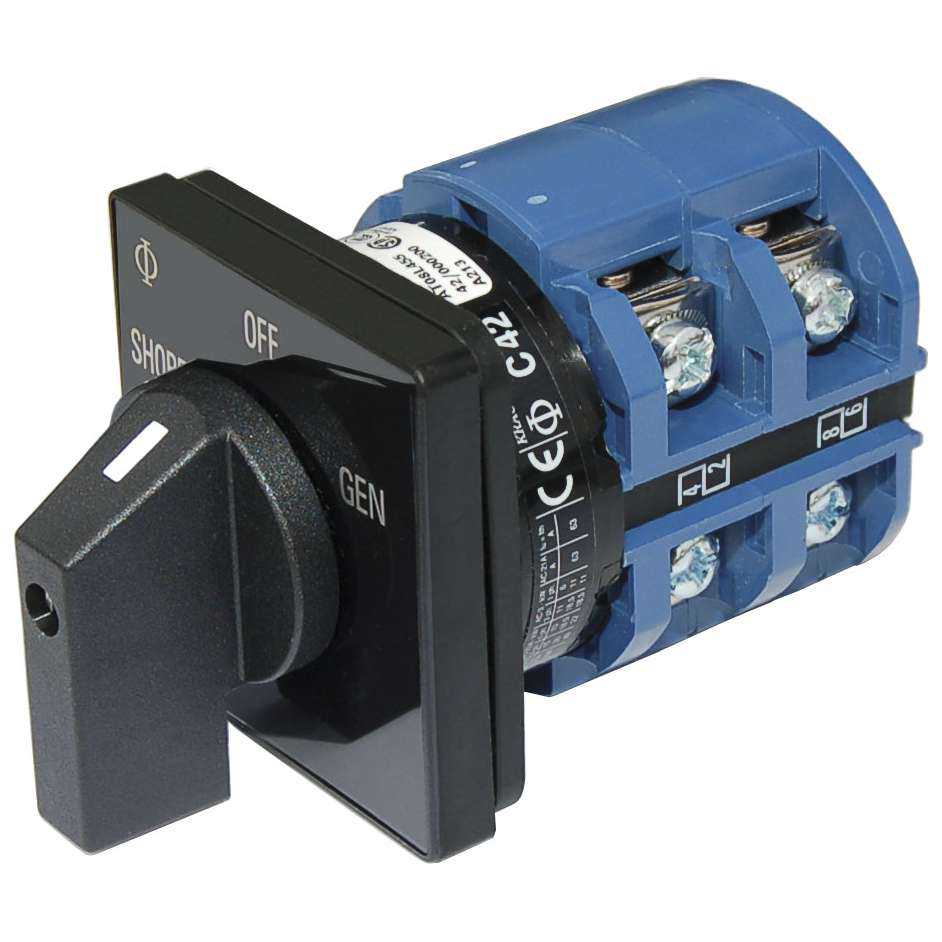

New Blue Sea Systems 120V/230V AC rotary switch with off + 2 position and 65A max. Part number 9011.
Features
Specifications
Features
- Switches 2 - 120 or 230 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16" (4.00mm) thick
- Heavy duty industrial rated switch
- Intuitive function - One hand operation
- UL listed
Specifications
- Positions: 2 + OFF
- Source Selection: 2
- Nominal Voltage: 120V
- Poles: 2
- Load Circuits Out: 1
- Maximum Amperage: 65A
- Maximum Voltage: 600V AC
- Source In: 2
- Height: 2.52in (64.01 mm)
- Width: 2.52in (64.01 mm)
- Depth: 2.41in (61.21 mm)
- Weight: 1.25lb (0.57 kg)
$259.15 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Black |
| Made In | United States |
| Item Weight | 0.8 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 9011 |
| Model | Blue Sea 9011 |
| Part # | 9011 |
| Product Type | AC Rotary Switch |
| Shipping Dims | 5" x 3" x 3" |
| Shipping Wt | 2 lbs |
| UPC | 632085090111 |
| Warranty | 5 Year |
