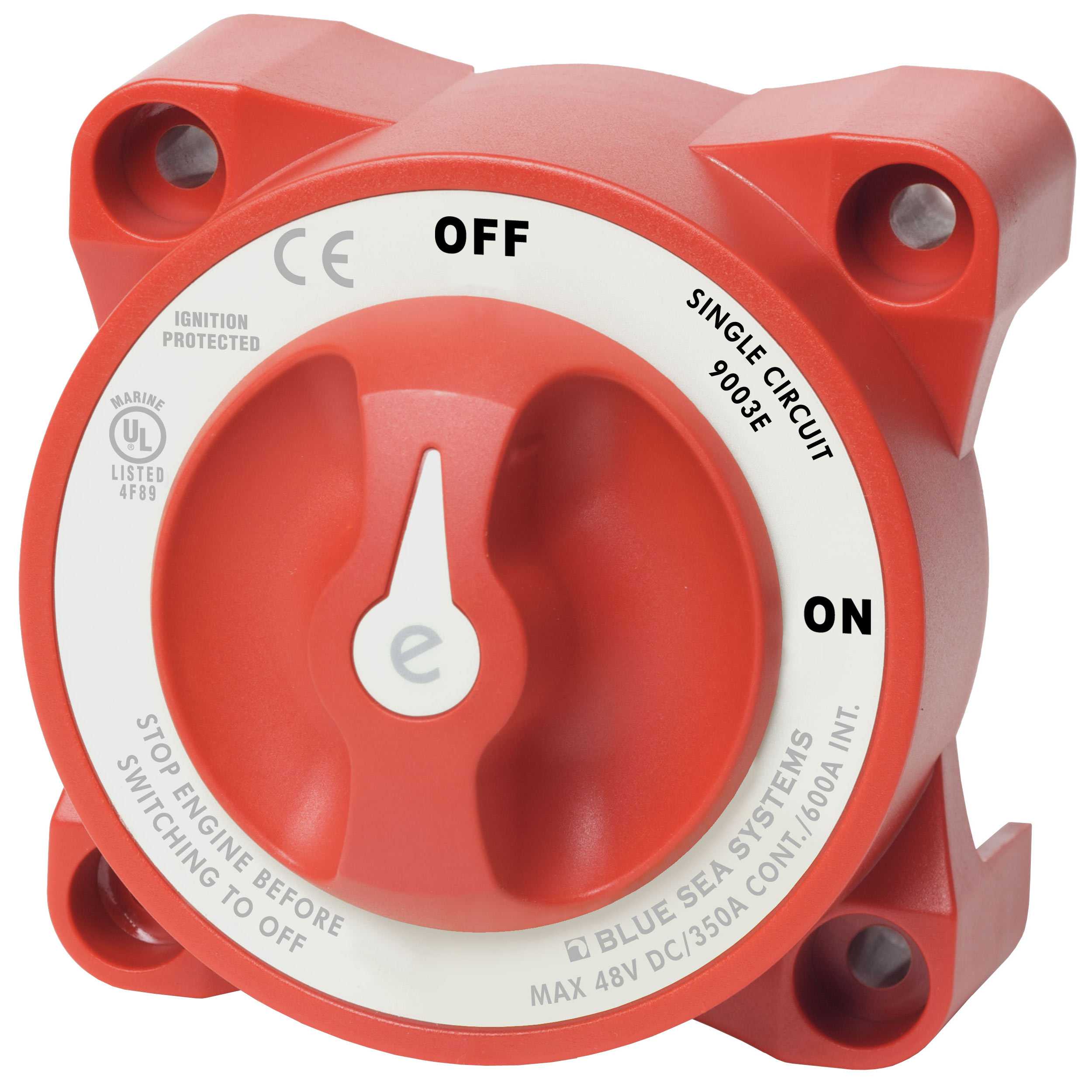

Blue Sea 9003e e-Series On/Off Battery Switch Single Marine Boat Red
By Blue Sea
By Blue Sea
| Part # | 9003e |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$43.75 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems e-Series on/off battery switch. Part number 9003e. Switches a single battery to a single load group.
Features
Specifications
Features
- Ignition protected, safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications
- Switch Type: Single Circuit ON-OFF
- Color: Red
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 48V DC
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 350A
- Intermittent Rating: 600A (5 min)
- Cranking Rating 10 sec: 2000A
- Cranking Rating 1 min: 1000A
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
- Mounting Holes: Accept 1/4" (M6) Screw
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 1.30lb (0.59 kg)
$43.75 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Red |
| Made In | Mexico |
| Item Weight | 1 lb |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 9003e |
| Model | Blue Sea 9003E |
| Part # | 9003e |
| Product Type | e-Series Battery Switch On/Off |
| Shipping Dims | 9" x 7" x 3" |
| Shipping Wt | 2 lbs |
| UPC | 632085900359 |
| Warranty | 5 Year |
