Blue Sea 8371 Power Distribution Panel 12V 24V DC 8-Position Waterproof
By Blue Sea
By Blue Sea
Part # | 8371 |
---|---|
Warranty | 5 Year |
Made In | Mexico |
Shipping Wt | 3 lbs |
$202.86 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Description

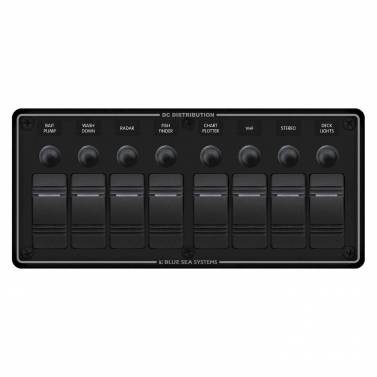

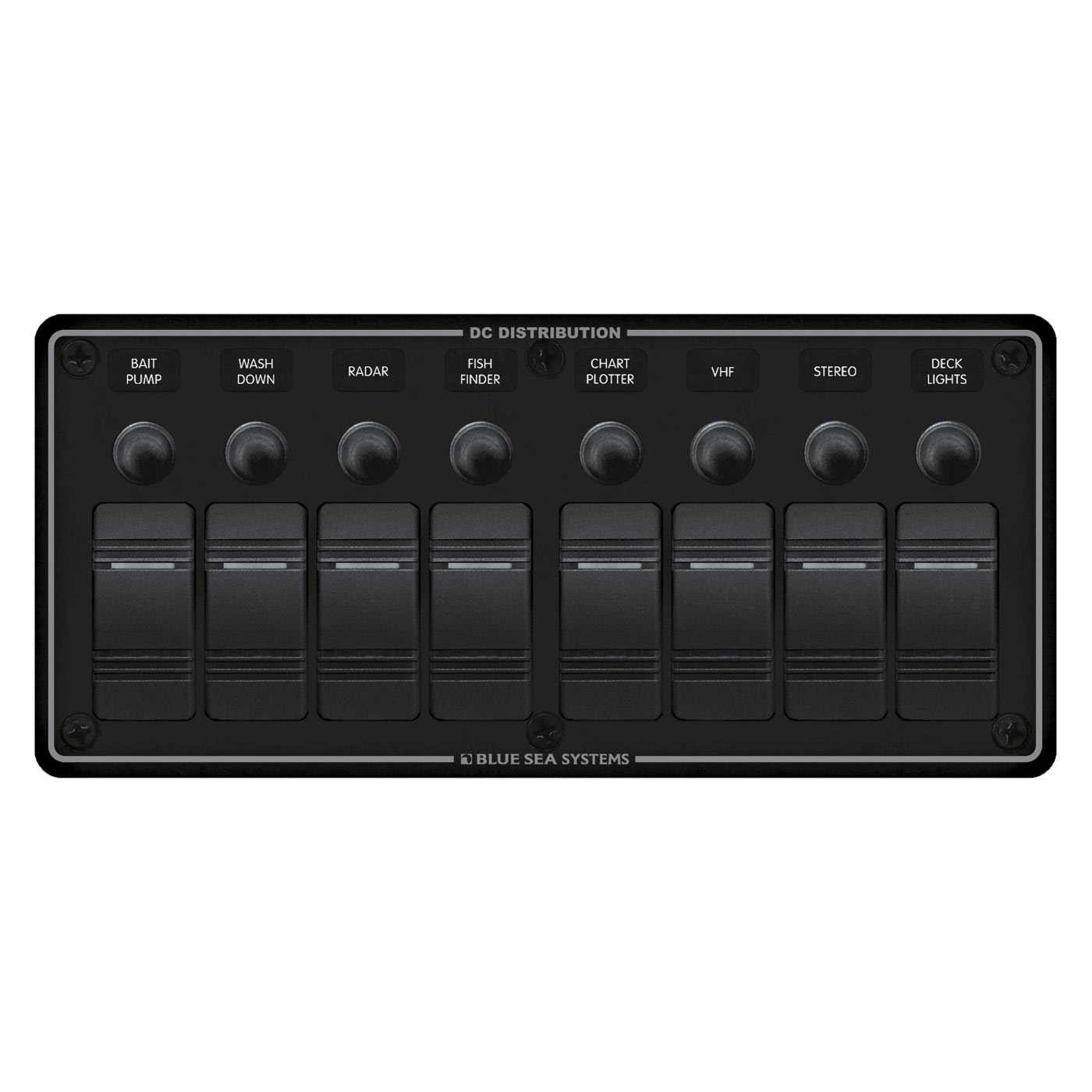

New Blue Sea Systems power distribution panel with waterproof switches and circuit breaker. Part number 8371. Fully wired and ready for installation.
Features
Specifications
Features
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66 - Protected against powerful water jets
- Ignition protected - safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset-Only circuit breakers with waterproof boots
- Includes Blue Sea 8214 Black 60 Label Set
Specifications
- Positions: 8
- Nominal Voltage: 12V DC
- 24V DC
- Panel Cumulative Rating: 90A
- Switch Rating: 20A @ 12V DC
- 15A @ 24V DC
- Height: 4.25in (107.95 mm)
- Width: 9.37in (238 mm)
- Depth: 3.25in (82.55 mm)
- Weight: 1.70lb (0.77 kg)
- Includes Blue Sea 8214 Black 60 Label Set
$202.86 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Specifics
Brand | Blue Sea |
---|---|
Made In | Mexico |
Item Weight | 1.7 lbs |
Manufacturer | Blue Sea Systems |
Manufacturer # | 8371 |
Model | Blue Sea 8371 |
Part # | 8371 |
Product Type | 12/24V DC Power Panel Waterproof |
Shipping Dims | 12" x 9" x 5" |
Shipping Wt | 3 lbs |
UPC | 632085083717 |
Warranty | 5 Year |
