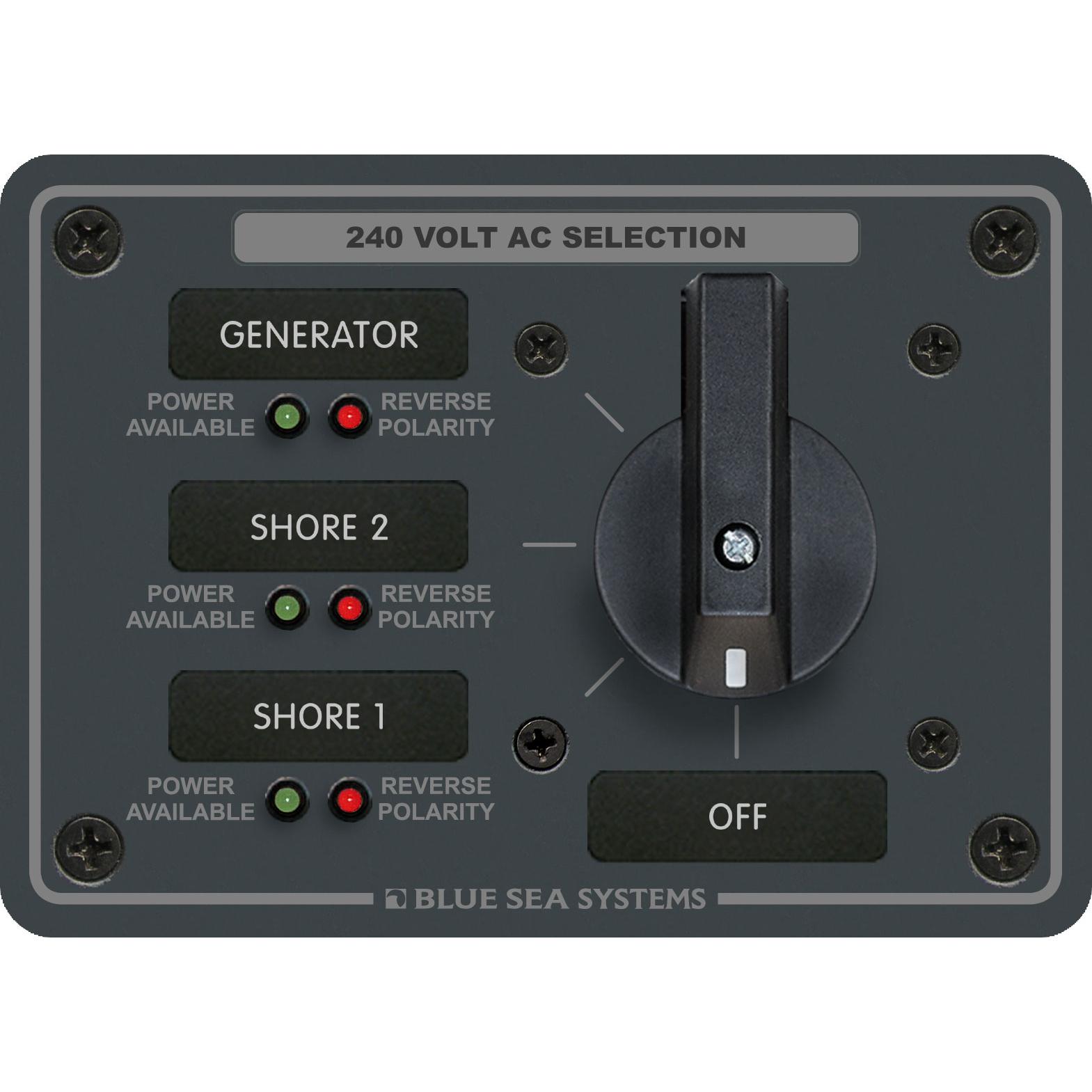

Blue Sea 8361 Marine AC Rotary Switch Panel 65 Ampere 3 positions + OFF, 3 Pole
By Blue Sea
By Blue Sea
| Part # | 8361 |
|---|---|
| Warranty | 5 Year |
| Made In | United States |
| Shipping Wt | 3 lbs |
$466.09 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
Blue Sea 8361 Marine AC Rotary Switch Panel 65 Ampere 3 positions + OFF, 3 Pole
Features
Specifications
Features
- Switches 3 - 240 Volt AC sources
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Red reverse polarity LED indicators
- Green power available LED indicators
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two or three different AC sources to one circuit
- Includes 9583 AC Rotary Panel 9 Label Set
Specifications
- Positions: 3 + OFF
- Nominal Voltage: 240V AC
- Poles: 3
- Maximum Amperage: 65A
- Source In: 3
- Height: 3.75in (95.25 mm)
- Width: 5.25in (133.35 mm)
- Depth: 5.50in (139.7 mm)
- Weight: 2.00lb (0.91 kg)
$466.09 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | United States |
| Item Weight | 2 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 8361 |
| Part # | 8361 |
| Product Type | AC Panel |
| Shipping Dims | 12" x 10" x 6" |
| Shipping Wt | 3 lbs |
| UPC | 632085083618 |
| Warranty | 5 Year |
