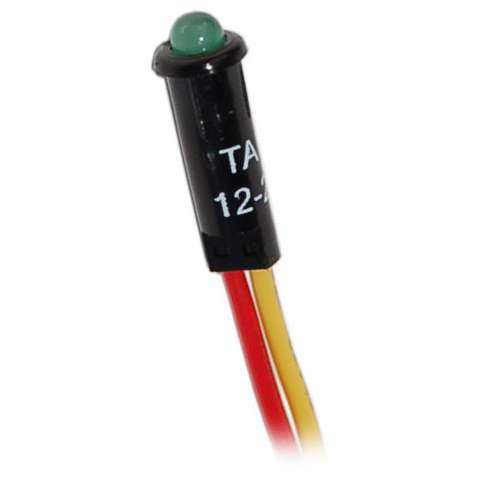

Blue Sea 8172 12V 24V DC Green LED Light Push-In Resistor Circuit Panel Marine
By Blue Sea
By Blue Sea
| Part # | 8172 |
|---|---|
| Warranty | 5 Year |
| Made In | Taiwan |
| Shipping Wt | 0.3 lbs |
$8.37 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
10 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems LED - 12/24V DC Green. Part number 8172.
Features
Specifications
Features
- Easily installed in any Blue Sea Systems circuit breaker panel
- Simple push-in installation mounts in any thickness material
- Useful as general indicator and alarm lights
Specifications
- Nominal Voltage: 12V DC, 24V DC
- Circuit: Resistor
- Current: 1.5mA @ 12V, 3.0mA @ 24V
- Mounting Hole Diameter: 11⁄64 in (4.37 mm)
- Power Consumption: 19mW @ 12V, 73mW @ 24V
- Wire Gauge: 26
- Weight: 0.03lb (0.01 kg)
$8.37 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
10 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Taiwan |
| Item Weight | 0.1 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 8172 |
| Model | Blue Sea 8172 |
| Part # | 8172 |
| Product Type | LED Light |
| Shipping Dims | 8" x 5" x 4" |
| Shipping Wt | 0.3 lbs |
| UPC | 632085081720 |
| Warranty | 5 Year |
