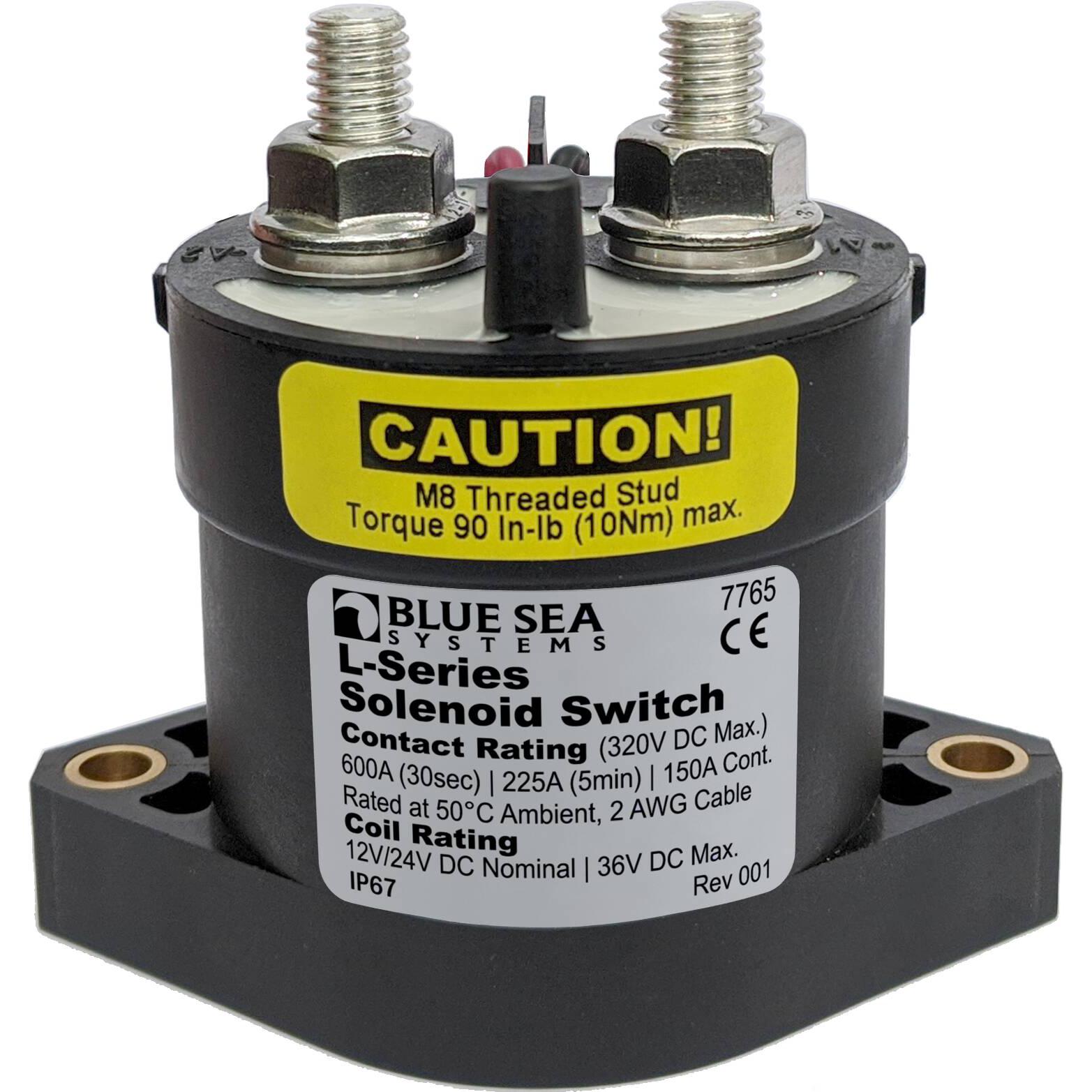

Blue Sea 7765 Marine Solenoid L-Series - 150A 12/24V

Overview
Ideal for switching DC subpanels, thrusters, windlass, inverters and other medium-amp DC loads.

Features

• Continuous duty, SPST - Normally Open
• Hermetically sealed contacts
• Activated by a low amperage ON-OFF switch mounted anywhere
• Coil control circuit minimizes heating and amperage draw
• No external coil suppression required

Specifications

• Control Circuit Voltage: 9-36V DC (12/24V nominal)
• Contact Voltage: 320V DC
• Amperage Operating Current continuous: 0.13A @ 12 V
  0.07A @ 24 V
• Amperage Operating Current when changing state: 3.8A
• Terminal Stud: M8 (accepts 5/16" terminals)
• Terminal Stud Torque: 90 in-lb (10.17 Nm) max
• Continuous Rating: 150A (2 AWG Cable in 50 degree C ambient)
• Intermittent Rating: 225A (5 min) (2 AWG Cable in 50 degree C ambient)
• Cranking Rating 30 sec: 600A (2 AWG Cable in 50 degree C ambient)
• Contact Form: SPST-NO
• Mounting Screw: #10 or M5
• Mounting Screw Torque: 30 in-lb (3.39 Nm) max (maximum torque (15 to 30 in-lb range))
  15 in-lb (1.69 Nm) min (minimum torque (15 to 30 in-lb range))
• Control Circuit Connection: 22 AWG Tinned Wire
• Operating Temperature Range: -40 degree C to +85 degree C
• Weight: .95lb (0.43 kg)
