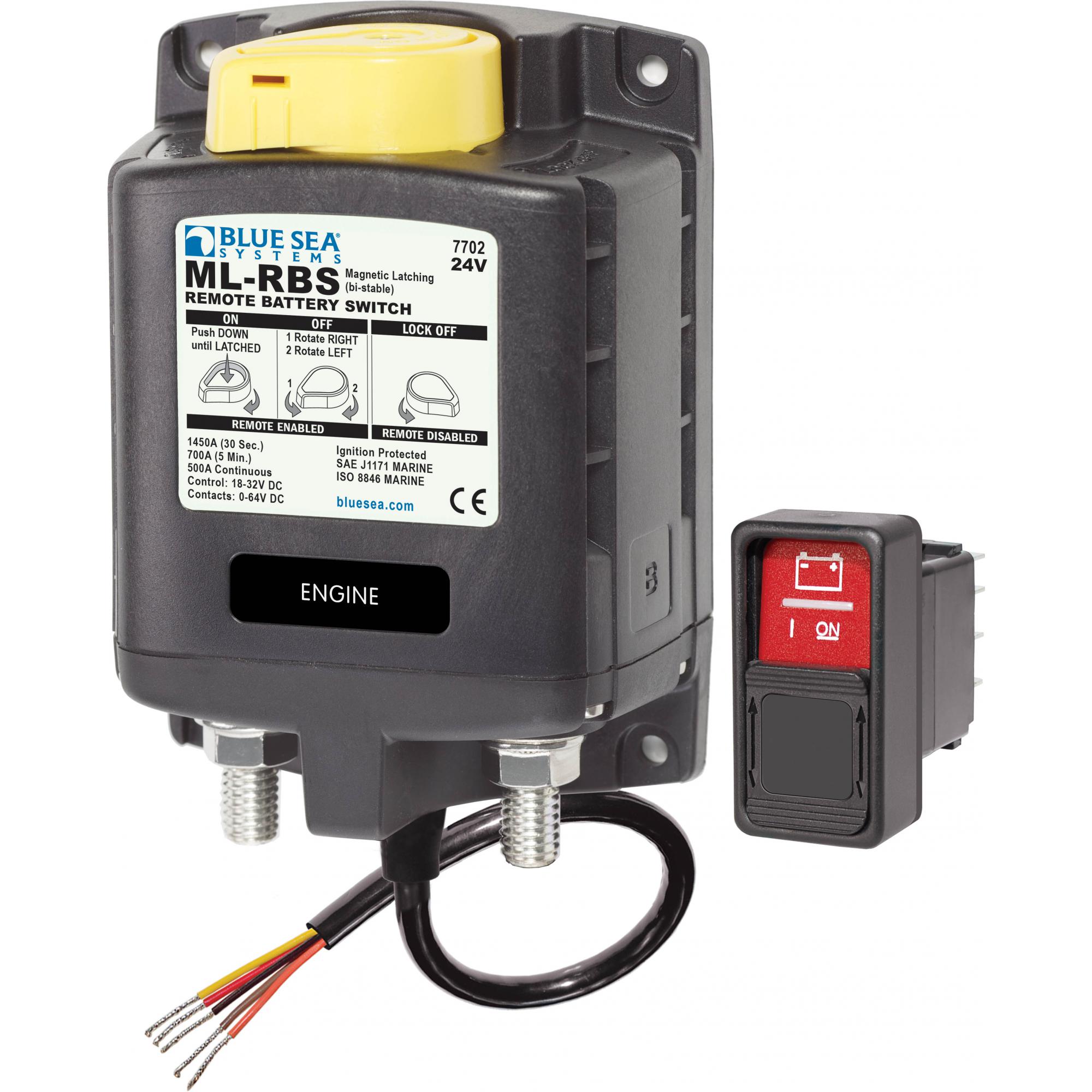

Blue Sea 7702 ML-RBS Remote Battery Switch with Manual Control - 24V DC 500A

Overview
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.

Features

• Manual override knob provides an added level of safety allowing control with or withoutpower and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications

• Control Circuit Voltage: 18-32V DC
• Control Circuit Connection: Tinned Wire
• Nominal Voltage: 24V DC
• Manual Control: Yes
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current: 0mA (@ 25°C nominal VDC)
• Amperage Operating Current when changing state: <4A (40 ms)
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating 30 sec: 1450A DC
• Minimum Operating Temperature: -10 degree C
• Maximum Operating Temperature: 60 degree C
• Cable Size to Meet Ratings: 2x (4/0)
• Live Current Switching: 300A @ 12V DC (10,000 Cycles)
• Master Control Switch Capability: No
• Mechanical Endurance: 100,000 Cycles
• Terminal Ring Diameter Clearance: 1.18in (29.97 mm)
• Terminal Stud Length: 0.875in (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 2.09lb (0.95 kg)
