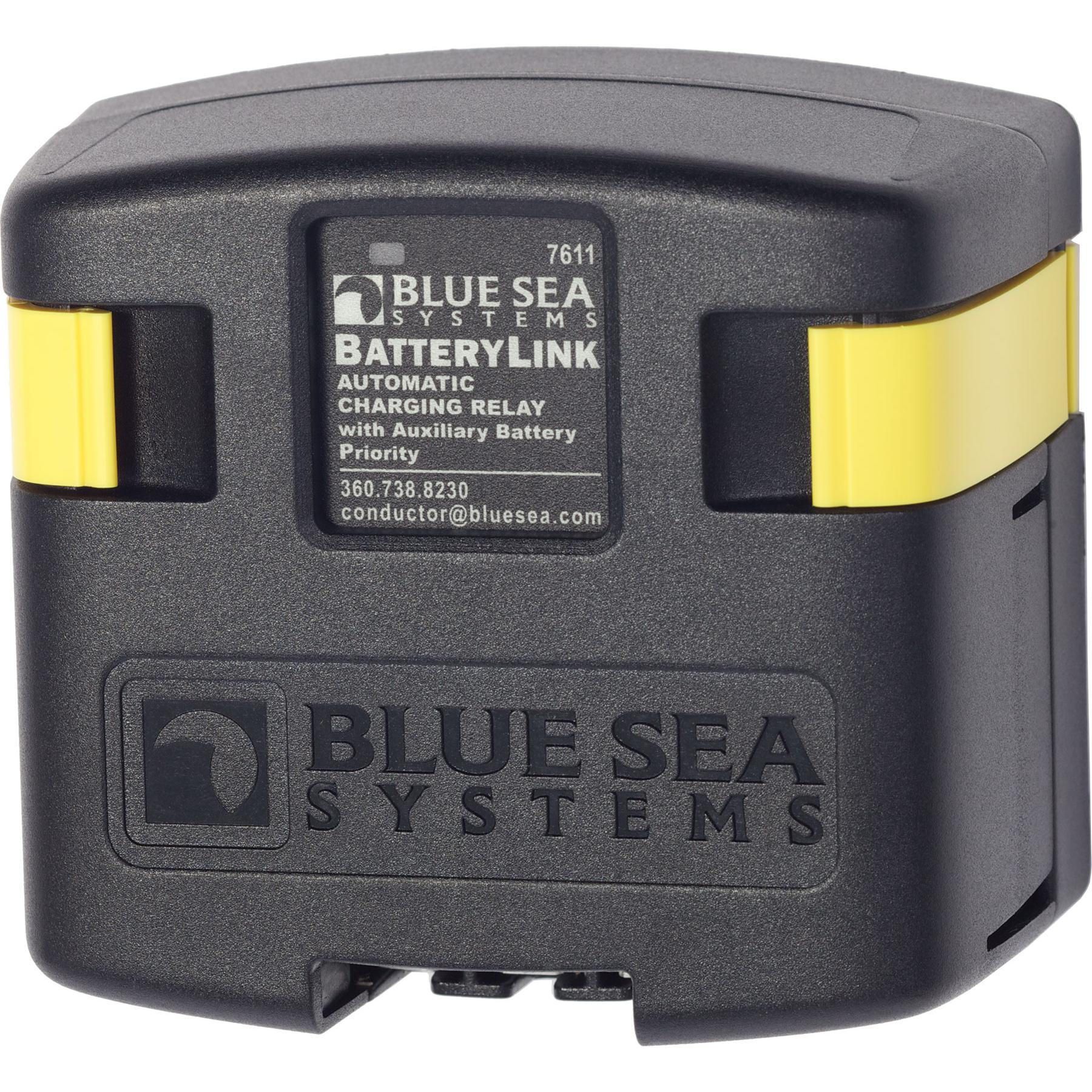

Blue Sea 7611 BatteryLink Automatic Charging Relay - 12V/24V DC 120A

Overview
Automatically shares single source of charge with Auxiliary Battery.

Features

• 120 Amp continuous rating
• 12/24V DC auto ranging voltage input
• Senses charging on two battery banks
• Side and bottom knockouts for cable connections
• Clip-on cover insulates terminal connections
• 7/8" (22 mm) stud length to accept multiple cable terminals
• Integrated LED indicates ACR status
• 1/4" x .032" male quick connect terminals for ground and optional features
• Largest battery bank cannot exceed Group 27

Specifications

• Nominal Voltage: 12V DC
  24V DC
• Auxiliary Battery Priority: Yes
• Amperage Operating Current: 175mA @ 12V (Combine)
  115mA @ 24V (Combine)
  15mA (Open)
• Continuous Rating: 120A
• Intermittent Rating: 210A (5 min)
• Maximum Cable Size: 1/0 AWG
• Maximum Torque: 140 in-lb (15.82 Nm)
• Stud Material: Tinned Copper
• Terminal Stud Size: 3/8" - 16 (M10)
• Relay Contact Position: SPEC_HEADER
• Combine 30 sec: 13.6V @ 12V
  27.2V @ 24V
• Combine 2 Min: 13.0V @ 12V DC
  26.0V @ 24V DC
• Over Voltage Lockout: 16.0V @ 12 V
  32.0V @ 24 V
• Open Low: 12.75V @ 12 V
  25.5V @ 24 V
• Auxiliary Priority: SPEC_HEADER
• Open Low: 12.25V @ 12V
  24.5V @ 24V
• Weight: 1.25lb (0.57 kg)
