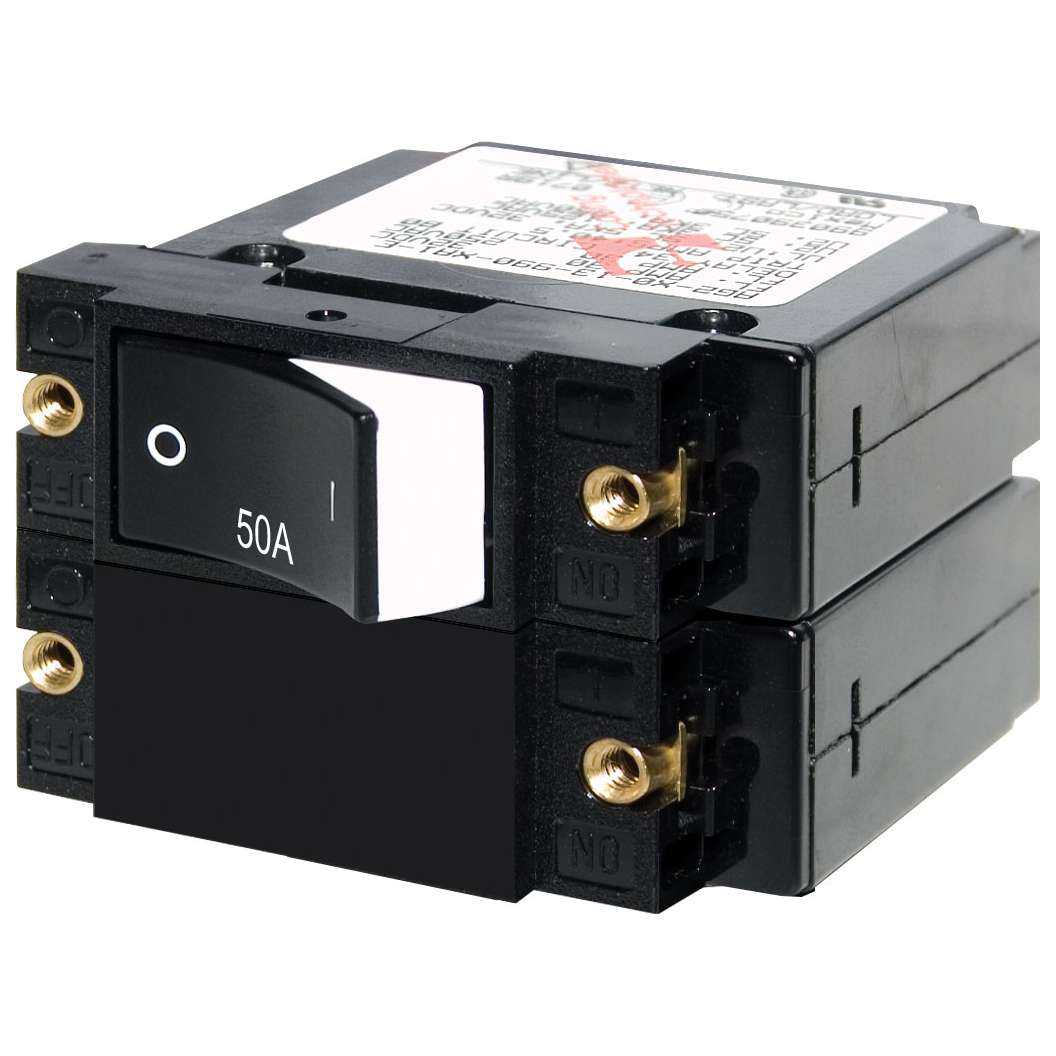

Blue Sea 7577 A-Series Raised Rocker Circuit Breaker Double Pole 50A
By Blue Sea
By Blue Sea
| Part # | 7577 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.6 lbs |
$40.87 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems A-Series Raised Rocker Circuit Breaker - Double Pole 50A. Part number 7577.
Features
Specifications
Features
- Color actuator indicates OFF position
- Trip Free design cannot be held ON during fault current condition
- International ON/OFF symbols support vertical or horizontal mounting
Specifications
- Amperage: 50A AC, 50A DC
- Actuator Style: Raised Rocker
- Poles: 2
- Maximum Voltage: 250V AC, 32V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 240V AC, 1500A @ 240V AC[TUV], 5000A @ 32V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.38lb (0.17 kg)
$40.87 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.4 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 7577 |
| Model | Blue Sea 7577 |
| Part # | 7577 |
| Product Type | Circuit Breaker |
| Shipping Dims | 9" x 7" x 3" |
| Shipping Wt | 0.6 lbs |
| UPC | 632085075774 |
| Warranty | 5 Year |
