Product Description

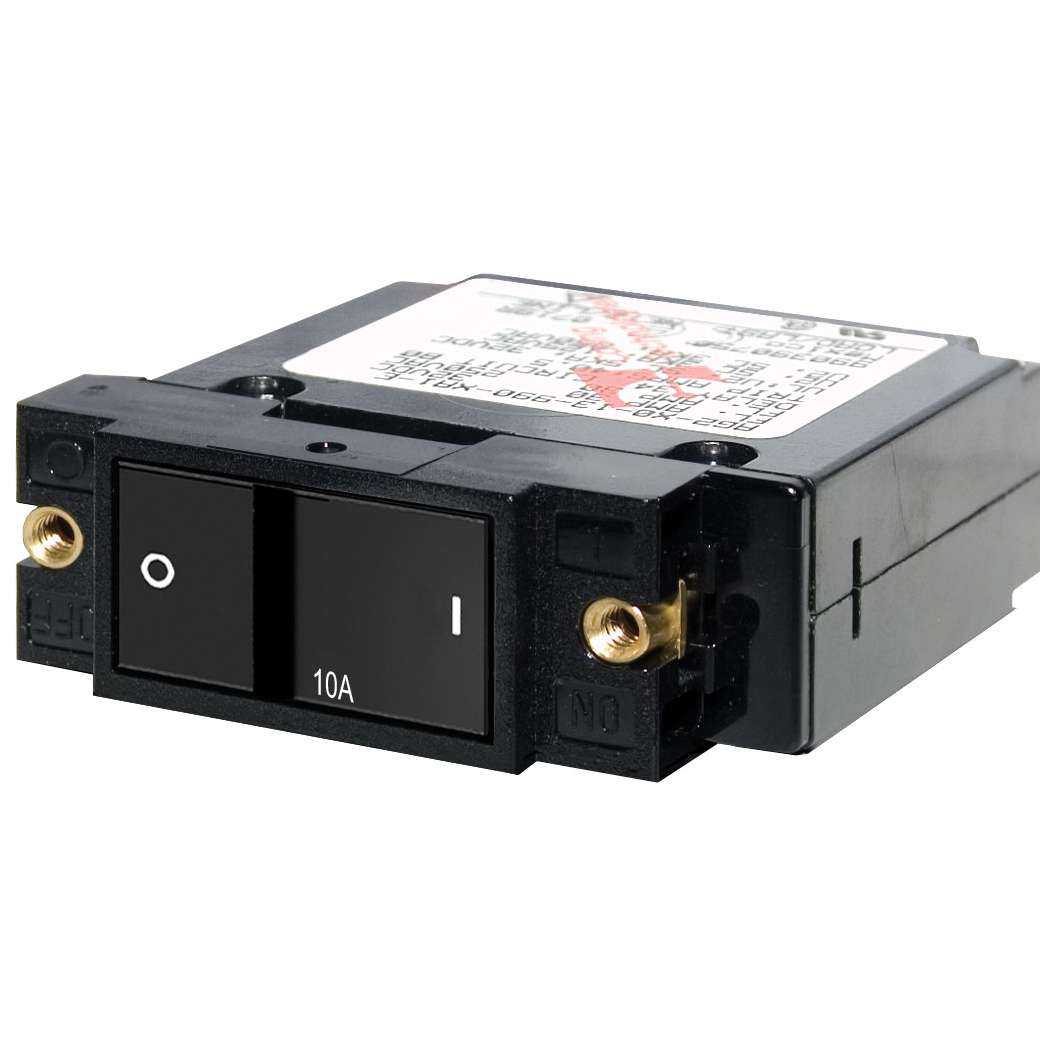

Blue Sea Systems 7402. A-Series Flat Rocker Circuit Breaker - Single Pole 10A.
Features
Specifications
Features
- Rocker actuator is flush in the ON position, eliminating the risk of accidential switching
- Color actuator indicates OFF position
- Trip Free design cannot be held ON during fault current condition
- 2 different actuator styles available
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols support vertical or horizontal mounting
Specifications
- Amperage: 10A AC, 10A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 240V AC, 32V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 125V AC, 1500A @ 240V AC, 5000A @ 32V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.21lb (0.1 kg)
