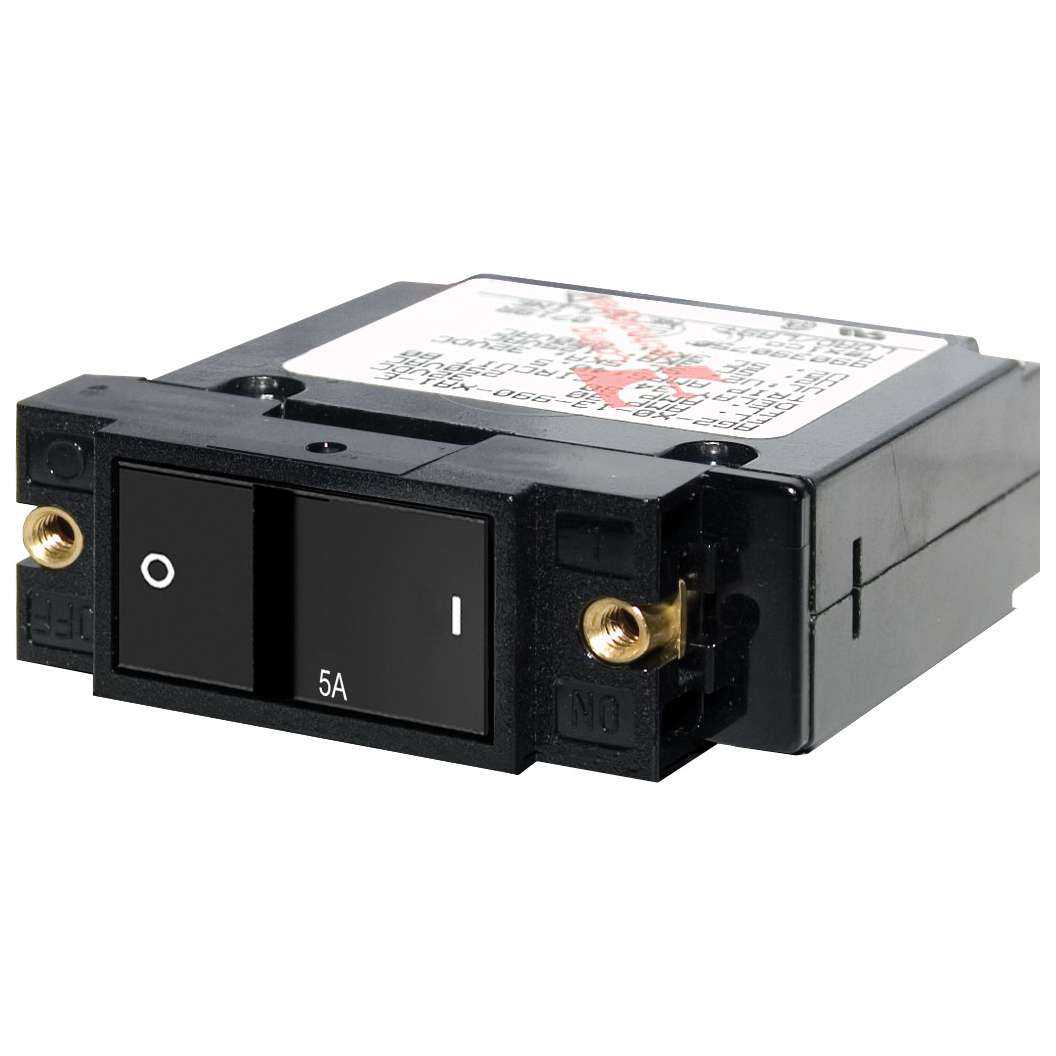

Blue Sea 7400 Marine A-Series Flat Rocker Circuit Breaker Single Pole 5A Boat
By Blue Sea
By Blue Sea
| Part # | 7400 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.4 lbs |
$21.73 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea Systems 7400. A-Series Flat Rocker Circuit Breaker - Single Pole 5A.
Features
Specifications
Features
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during fault current condition
- 2 different actuator styles available
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols support vertical or horizontal mounting
Specifications
- Amperage: 5A AC, 5A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 240V AC, 32V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 125V AC, 1500A @ 240V AC, 5000A @ 32V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.21lb (0.1 kg)
$21.73 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.3 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 7400 |
| Model | Blue Sea 7400 |
| Part # | 7400 |
| Product Type | Circuit Breaker |
| Shipping Dims | 10" x 6" x 2" |
| Shipping Wt | 0.4 lbs |
| UPC | 632085074005 |
| Warranty | 5 Year |
