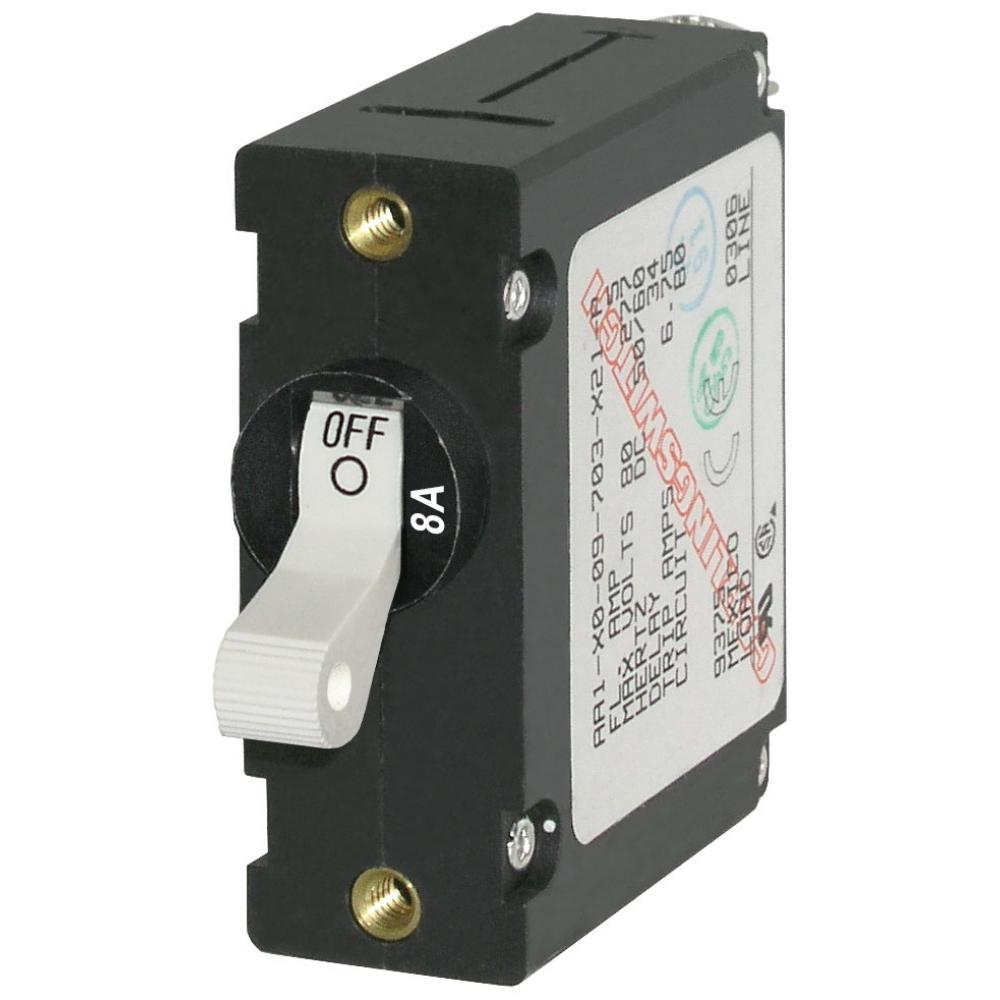

Blue Sea 7299 Marine A-Series White Toggle Circuit Breaker - Single Pole 8A
By Blue Sea
By Blue Sea
| Part # | 7299 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.3 lbs |
$20.51 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 7299 Marine A-Series White Toggle Circuit Breaker - Single Pole 8A
Specifications
Specifications
- Amperage: 8A AC
8A DC - Color: White
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 240V AC
65V DC - Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 120V AC
1500A @ 240V AC [TUV]
3000A @ 240V AC [UL 1077]
7500A @ 65V DC - Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screws: #10-32 Stainless Steel
- Weight: 0.17lb (0.08 kg)
- Weight: 0.13lb (0.06 kg)
$20.51 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.13 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 7299 |
| Part # | 7299 |
| Product Type | Circuit Breaker |
| Shipping Dims | 6" x 4" x 4" |
| Shipping Wt | 0.3 lbs |
| UPC | 632085072995 |
| Warranty | 5 Year |
