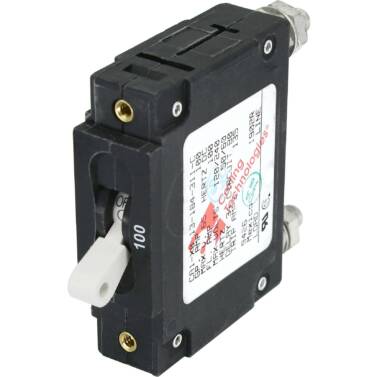

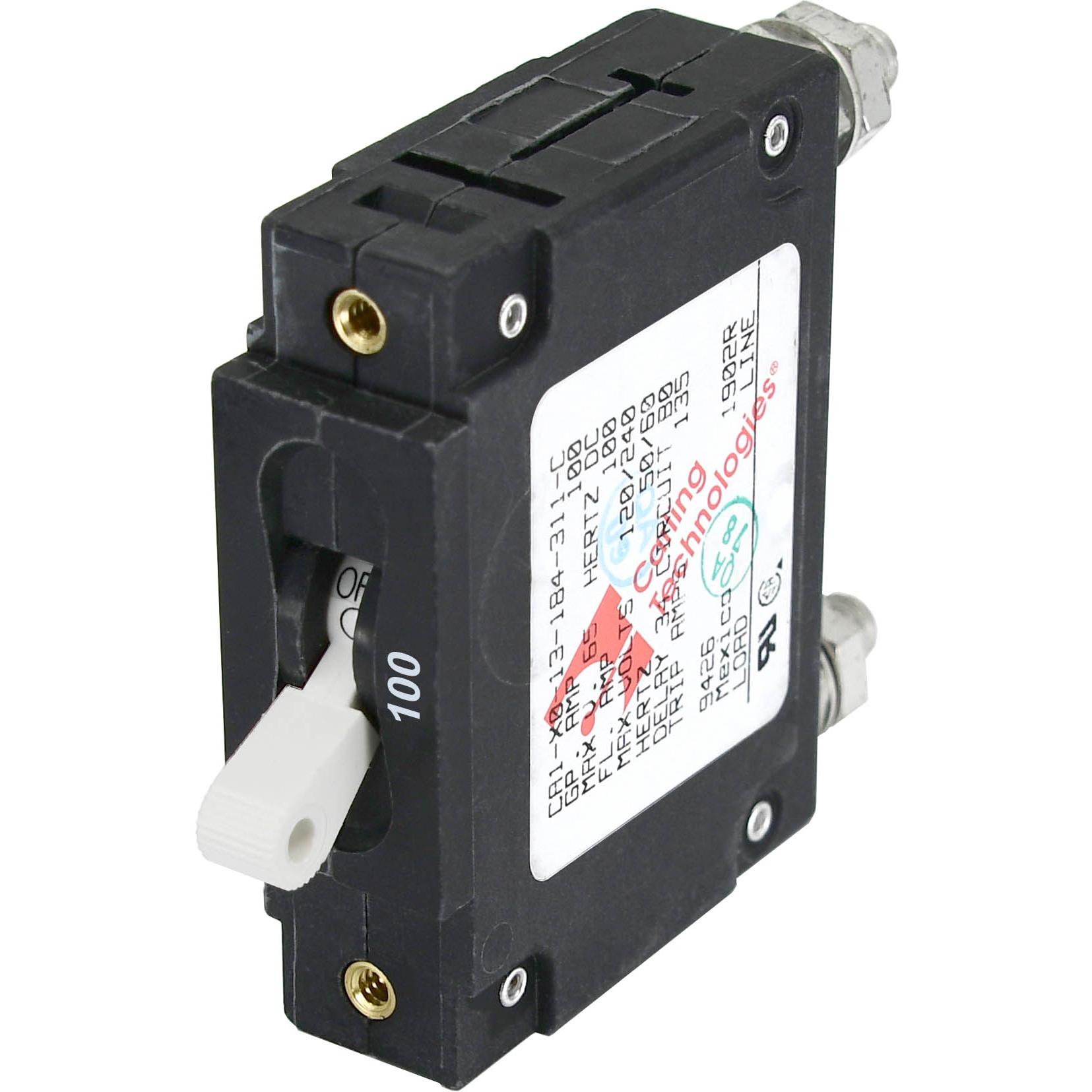

Blue Sea 7250 Marine C-Series White Toggle Circuit Breaker - Single Pole 100 Amp
By Blue Sea
By Blue Sea
| Part # | 7250 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.4 lbs |
$39.26 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 7250 Marine C-Series White Toggle Circuit Breaker - Single Pole 100 Amp
Features
Specifications
Features
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free"-cannot be held closed after trip
Specifications
- Amperage: 100A AC
100A DC - Color: White
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 240V AC
65V DC - Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A @ 125V AC
5000A @ 240V AC
10000A @ 80V DC - Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Weight: 0.25lb (0.11 kg)
$39.26 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.25 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 7250 |
| Part # | 7250 |
| Product Type | Circuit Breaker |
| Shipping Dims | 6" x 4" x 4" |
| Shipping Wt | 0.4 lbs |
| UPC | 632085072506 |
| Warranty | 5 Year |
