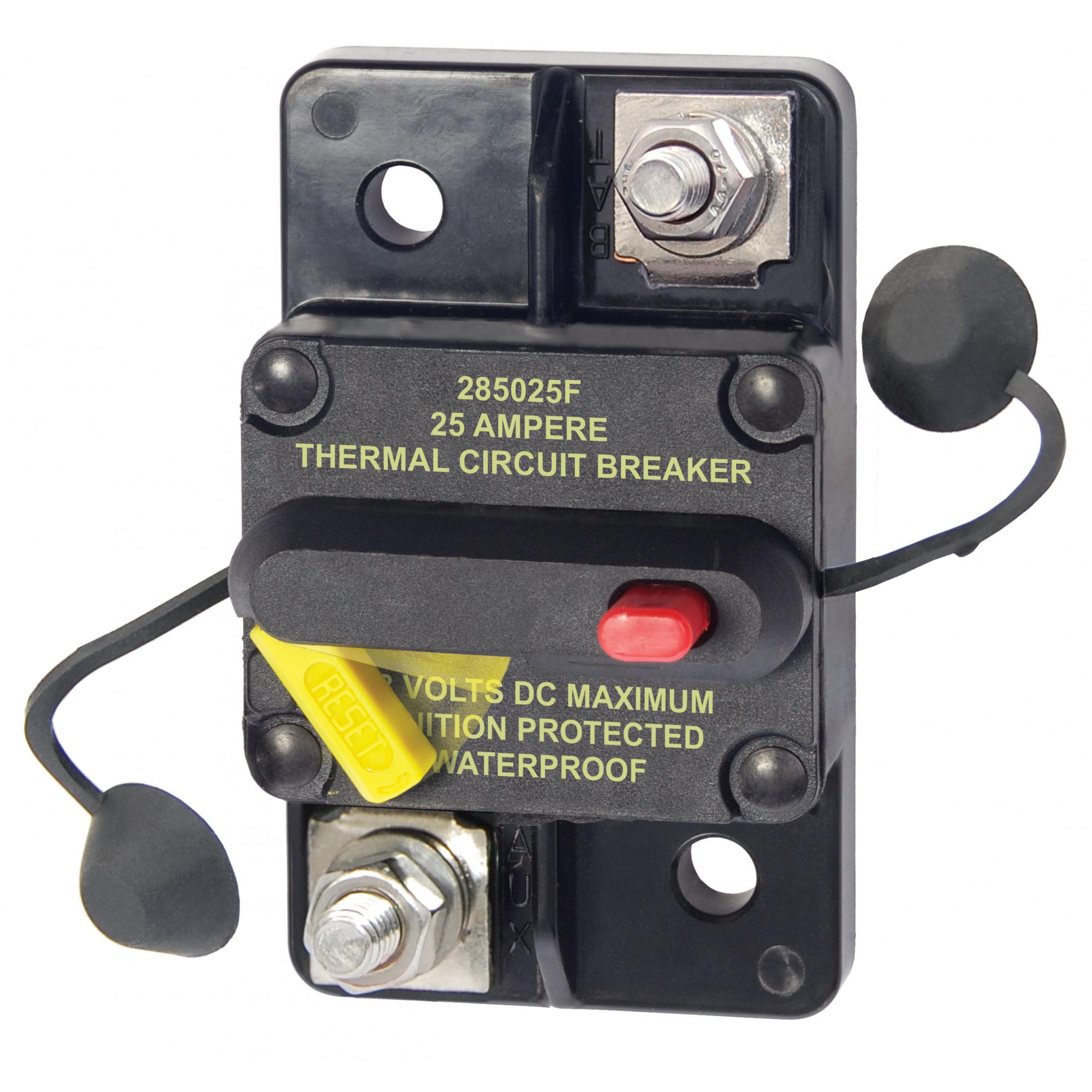

Blue Sea 7180 Circuit Breaker 285-Series 25A Surface Mount Marine
By Blue Sea
By Blue Sea
| Part # | 7180 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.5 lbs |
$44.32 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 7180 Marine 285-Series Circuit Breaker - Surface Mount 25A
Features
Specifications
Features
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- "Trip Free" - cannot be held closed after trip
Specifications
- Amperage: 25A
- Maximum Voltage: 48V DC
- Mounting: Surface Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud: M6 (accepts 1/4" Ring Terminal)
- Terminal Stud Torque: 60 in-lb (6.78 Nm)
- Interrupt Capacity: 3000A @ 48V (Achieved using SAE J1625)
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Circuit Breaker Class: Type III - switchable/manual reset - trip free
- Weight: 0.50lb (0.23 kg)
$44.32 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.34 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 7180 |
| Part # | 7180 |
| Product Type | Circuit Breaker |
| Shipping Dims | 8" x 4" x 4" |
| Shipping Wt | 0.5 lbs |
| UPC | 632085071806 |
| Warranty | 5 Year |
