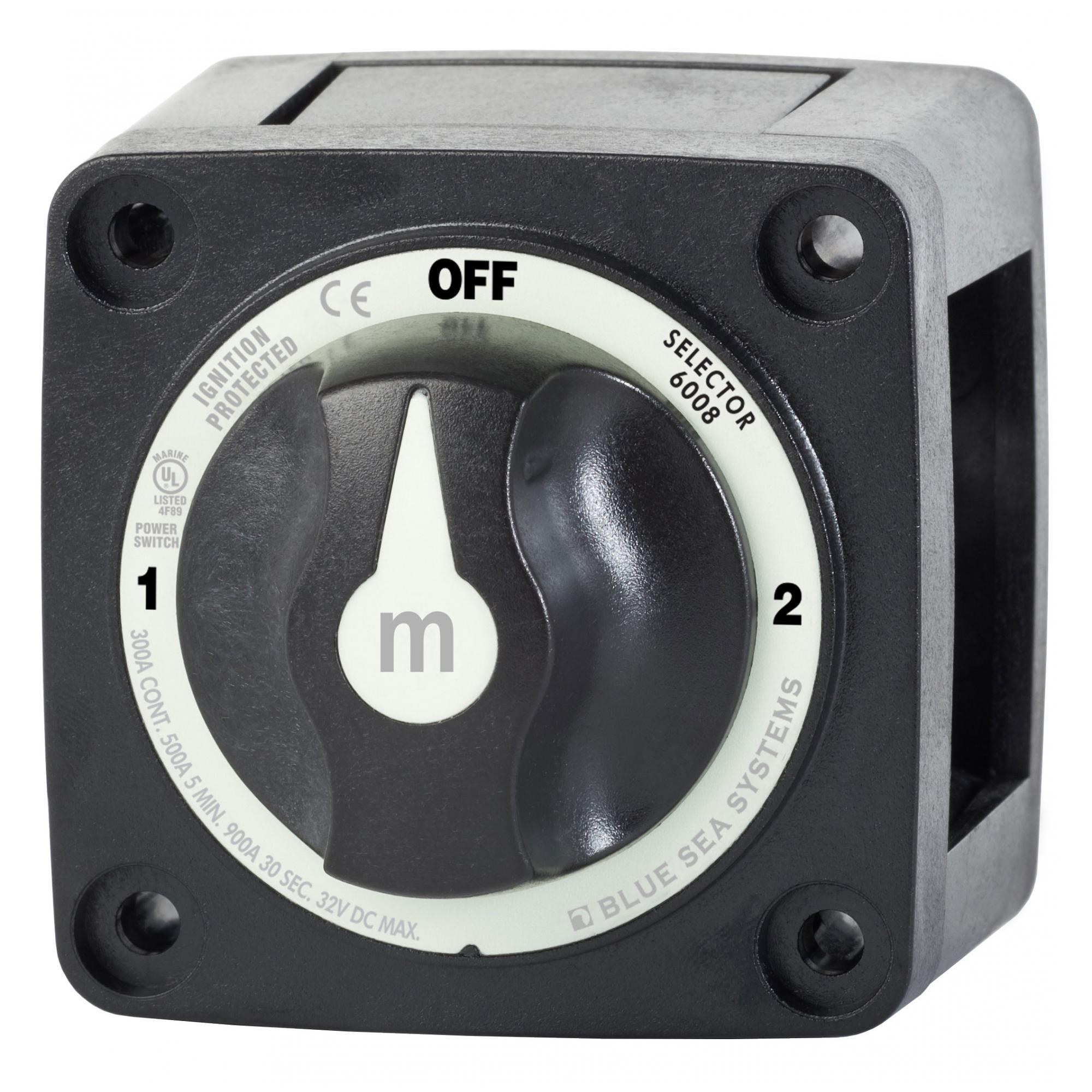

Blue Sea 6008200 Marine m-Series Selector 3 Position Battery Switch - Black
By Blue Sea
By Blue Sea
| Part # | 6008200 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 1 lbs |
$45.37 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 6008200 Marine m-Series Selector 3 Position Battery Switch - Black
Overview
Switches isolated battery banks to all loads or combines battery banks to all loads.
Specifications
Overview
Switches isolated battery banks to all loads or combines battery banks to all loads.
Specifications
- Switch Type: Selector 3 Position
- Color: Black
- Switch Positions: 3
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Stud Size: 3/8"
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 Min)
- Cranking Rating 30 sec: 900A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Mounting Holes: Accept #10 Screw
- Stud Material: Tinned Copper
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 0.77lb (0.35 kg)
$45.37 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
3 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.77 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 6008200 |
| Part # | 6008200 |
| Product Type | m-Series Battery Switch |
| Shipping Dims | 8" x 4" x 4" |
| Shipping Wt | 1 lbs |
| UPC | 632085600822 |
| Warranty | 5 Year |
