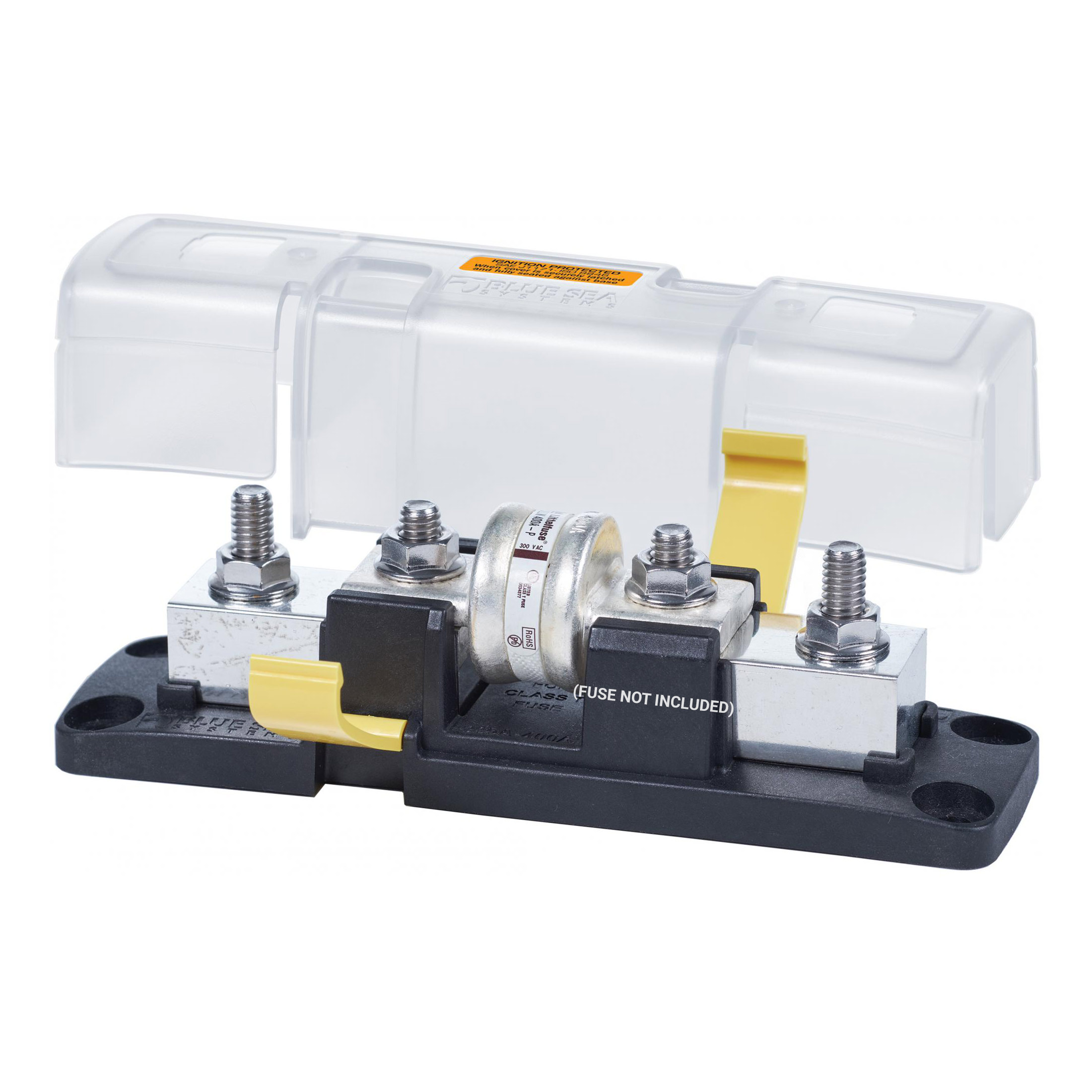

Blue Sea 5502100 Marine Class T Fuse Block with Insulating Cover - 225 to 400A

Overview
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics.

Features

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Stud design ensures secure fuse mounting even with high heat
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat
• Ignition Protected

Specifications

• Cable Size: Up to 4/0 AWG
• Ignition Protected: Yes
• Maximum Amperage: 320A (BEST PRACTICE: Limit the amount of current in the circuit to 80% of the fuse rating.)
  300A if inside engine space and continuous (BEST PRACTICE: Limit the amount of current in the circuit to 80% of the fuse rating.)
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: Tin-Plated Copper
• Mounting Fastner Size: 1/4" or M6 Hardware
• Terminal Stud Size: 3/8"-16 (M10)
• Weight: 1.10lb (0.5 kg)
