Blue Sea 5196 Marine MRBF Surface Mount Fuse Block - Common Source
By Blue Sea
By Blue Sea
| Part # | 5196 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$50.24 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

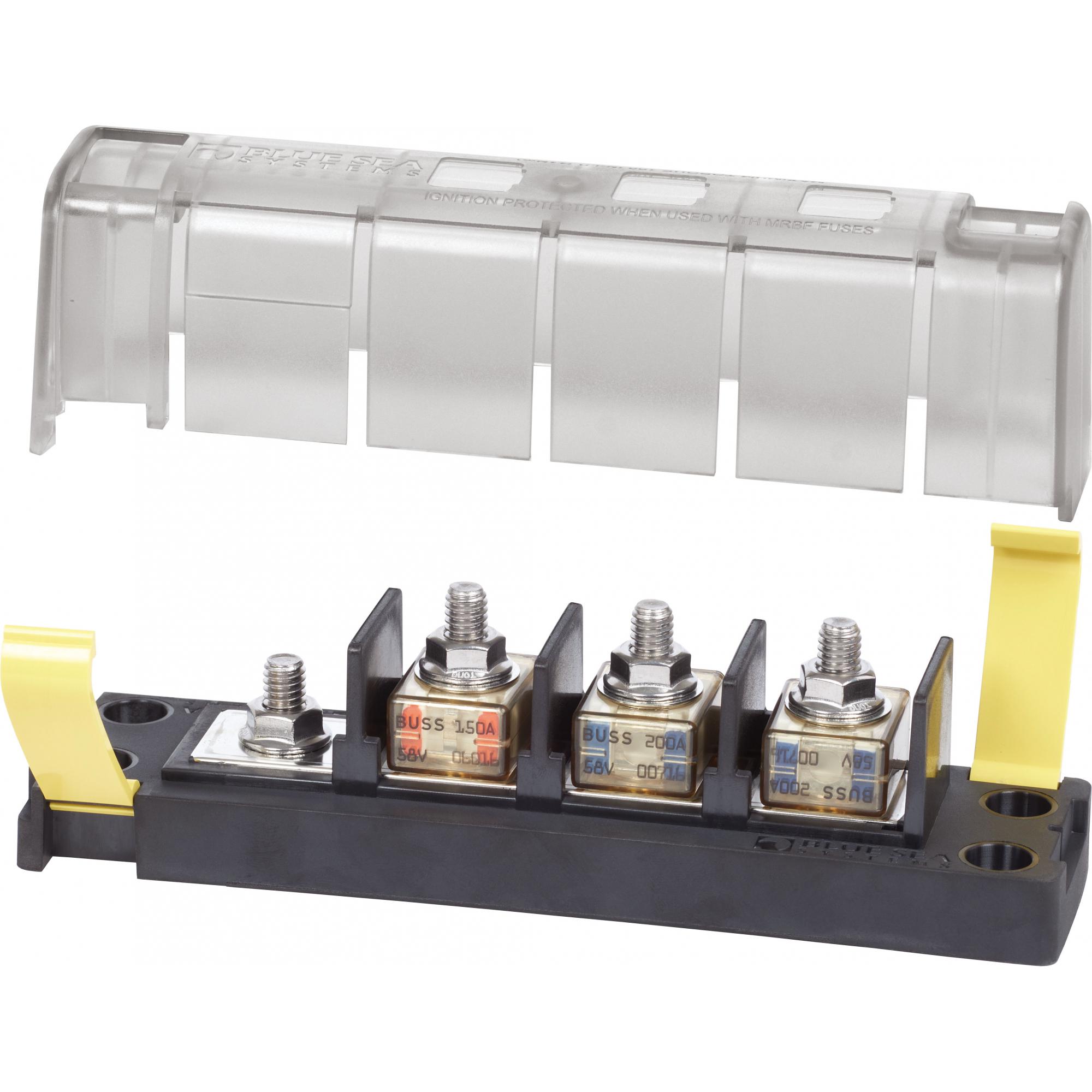

Blue Sea 5196 Marine MRBF Surface Mount Fuse Block - Common Source
Features
Specifications
Features
- Accommodates three MRBF fuses for consolidated high amperage circuit protection
- Safely provides power to three loads from a single source
- Clip-on insulating cover satisfies ABYC/USCG insulation requirements
- Versatile wiring options allow all wires to come out a single side
- Label recesses accommodate Blue Sea Systems square format labels for easy circuit identification
- One-piece stainless flange nuts ensure safe, secure connections
- Fuses sold separately
Specifications
- Ignition Protected: Yes
- Maximum Amperage: 300A per block
240A per circuit (Using 4/0 Cable) - Maximum Voltage: 58V DC
- Mounting: Surface Mount M5 (#10)
- Maximum Torque: 100 in-lb (11.3 Nm)
- Terminal Stud Size: M8 (5/16"-18)
- Weight: 1.20lb (0.54 kg)
$50.24 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 1.2 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 5196 |
| Part # | 5196 |
| Product Type | Fuse Block |
| Shipping Dims | 8" x 4" x 4" |
| Shipping Wt | 2 lbs |
| UPC | 632085051969 |
| Warranty | 5 Year |
