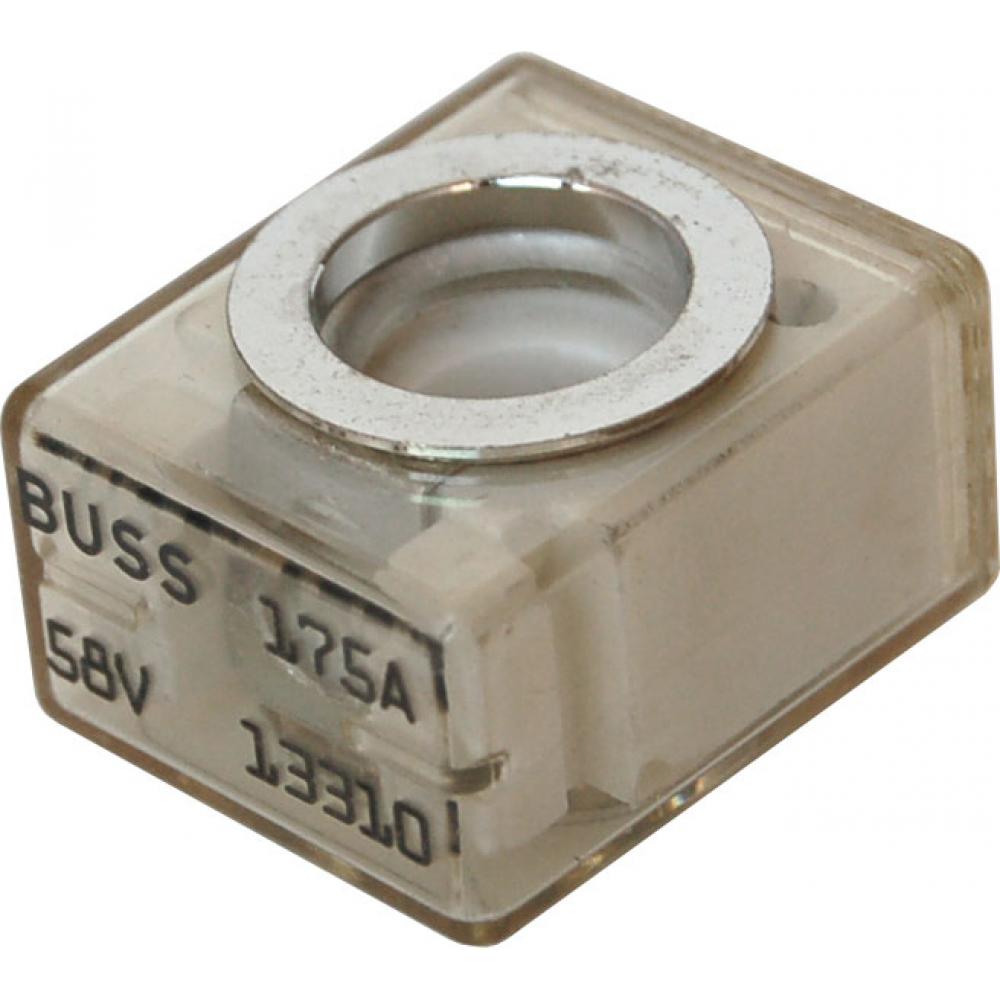

Blue Sea 5186 Marine MRBF Terminal Fuse - 175A
By Blue Sea
By Blue Sea
| Part # | 5186 |
|---|---|
| Warranty | 5 Year |
| Made In | Taiwan |
| Shipping Wt | 0.2 lbs |
$18.48 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 5186 Marine MRBF Terminal Fuse - 175A
Features
Specifications
Features
- Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151 - do not mount the fuse directly to the battery terminal
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected-safe for installation aboard gasoline powered boats
- Clear window-visual indication of blown condition
- Color coded for each amperage
Specifications
- Amperage: 175A
- Ignition Protected: Yes
- Maximum Voltage: 58V DC
- Interrupt Capacity: 10000A @ 14V DC
5000A @ 32V DC
2000A @ 58V DC - Weight: 0.06lb (0.03 kg)
$18.48 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Taiwan |
| Item Weight | 0.06 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 5186 |
| Part # | 5186 |
| Product Type | MRBF Fuse |
| Shipping Dims | 4" x 4" x 4" |
| Shipping Wt | 0.2 lbs |
| UPC | 632085051860 |
| Warranty | 5 Year |
