Blue Sea 5051 ST CLB Circuit Breaker Block 12 Independent Circuits
By Blue Sea
By Blue Sea
| Part # | 5051 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$67.71 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

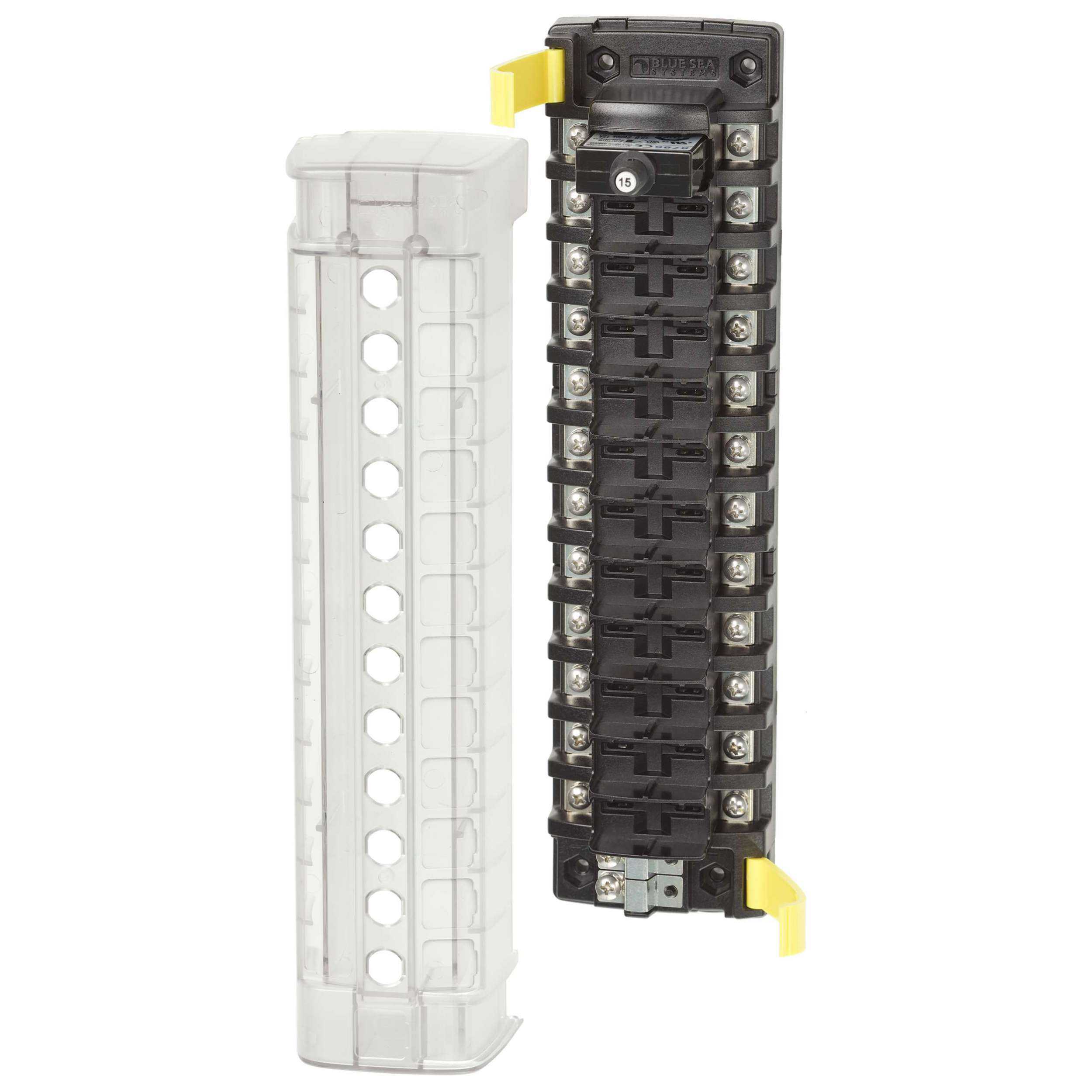

New Blue Sea Systems ST CLB Circuit Breaker Block - 12 Independent Circuits. Part number 5051.
Features
Specifications
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications
- Circuits: 12
- Maximum Amperage: 32A (per circuit), 40A (per jumped circuit group)
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4) or #8 Nut
- Source: Independent Source
- Minimum Operating Temperature: -10 degree C
- Maximum Operating Temperature: 60 degree C
- Mounting Centers: 10.13in (257.3 mm)
- Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
- Height: 11.19in (284.23 mm)
- Weight: 1.50lb (0.68 kg)
$67.71 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 1.26 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 5051 |
| Model | Blue Sea 5051 |
| Part # | 5051 |
| Product Type | Circuit Breaker |
| Shipping Dims | 16" x 5" x 3" |
| Shipping Wt | 2 lbs |
| UPC | 632085050511 |
| Warranty | 5 Year |
