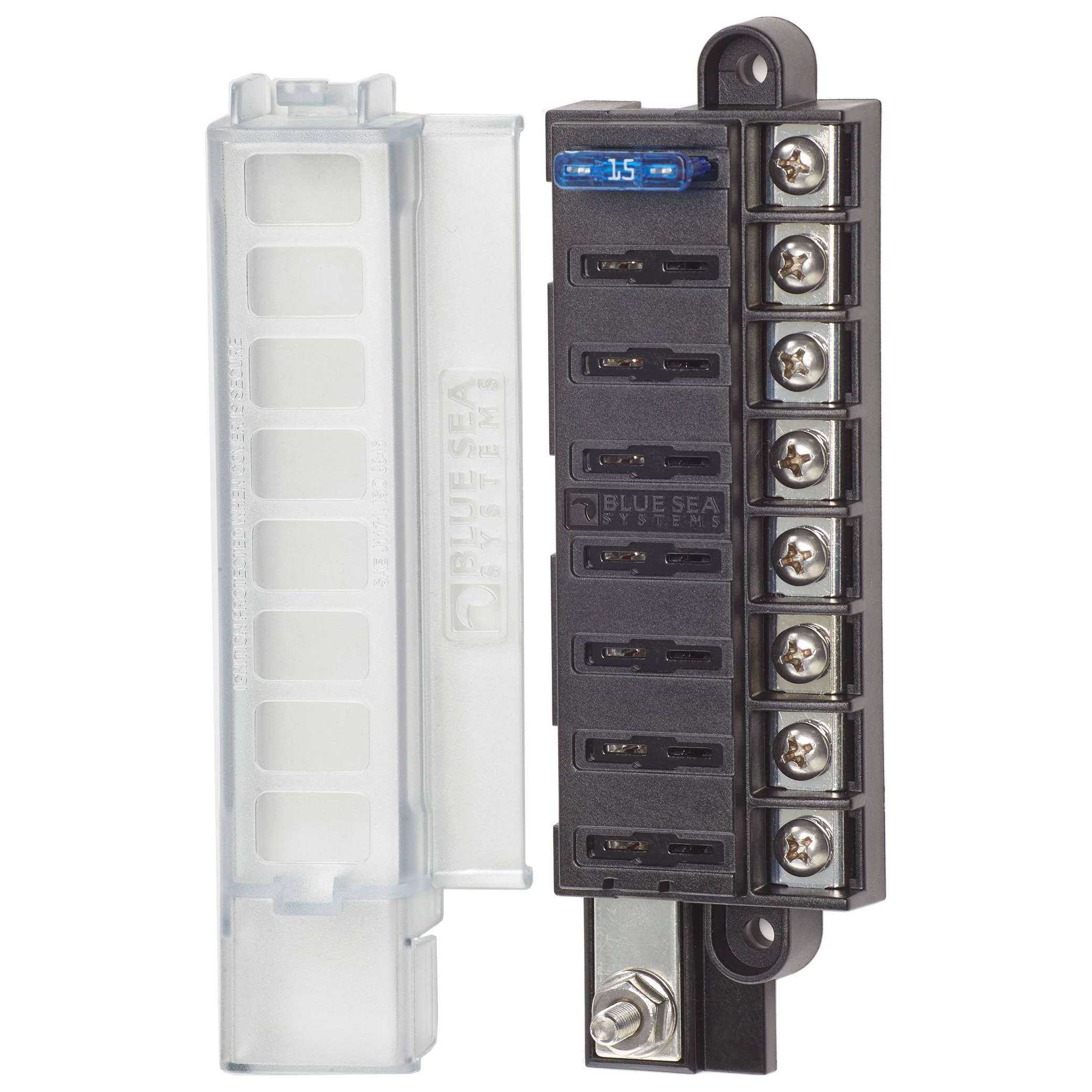

New Blue Sea Systems ST Blade compact fuse block with 8 circuits. Part number 5046. Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint.

Features

• Ignition protected when cover is secure -meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Single side design allows wire entry from one side to minimize footprint
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Includes 8 write-on circuit labels
• Fuses sold separately

Specifications

• Circuits: 8
• Maximum Amperage: 100A per block, 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Terminal Stud Torque: 24 in-lb (2.71 Nm)
• Screw Terminal Torque: 18 in-lb (2.03 Nm)
• Screw Terminal Type: #8-32 Scews with captive star lock washer
• Terminal Stud Size: #10-32
