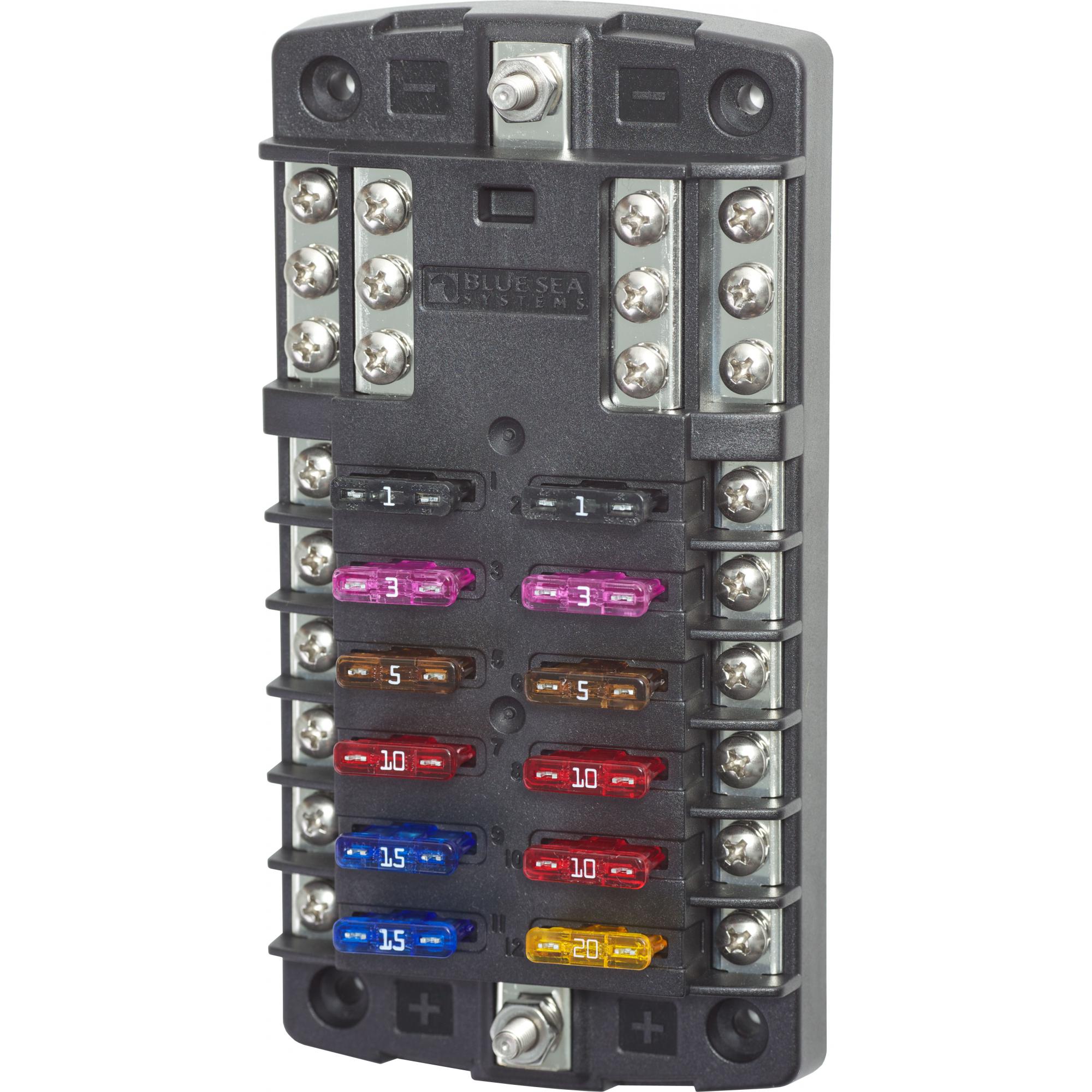

Blue Sea 5031 Marine ST Blade Fuse Block - 12 Circuits with Negative Bus

Overview
Consolidates branch circuits and in-line fuses.

Features

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits
• Models available with or without a cover
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO and ATC fast acting blade fuses
• Fuses sold separately

Specifications

• Circuits: 12
• Maximum Amperage: 100A per block
  30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Negative Bus: #10-32 Stud
• Positive Bus: #10-32 Stud
• Recommended Torque: 24 in-lb (2.71 Nm)
• Screw Terminal Torque: 18 in-lb (2.03 Nm)
• Screw Terminal Type: #8-32 Screws with captive star lock washer
• Weight: 0.65lb (0.29 kg)
