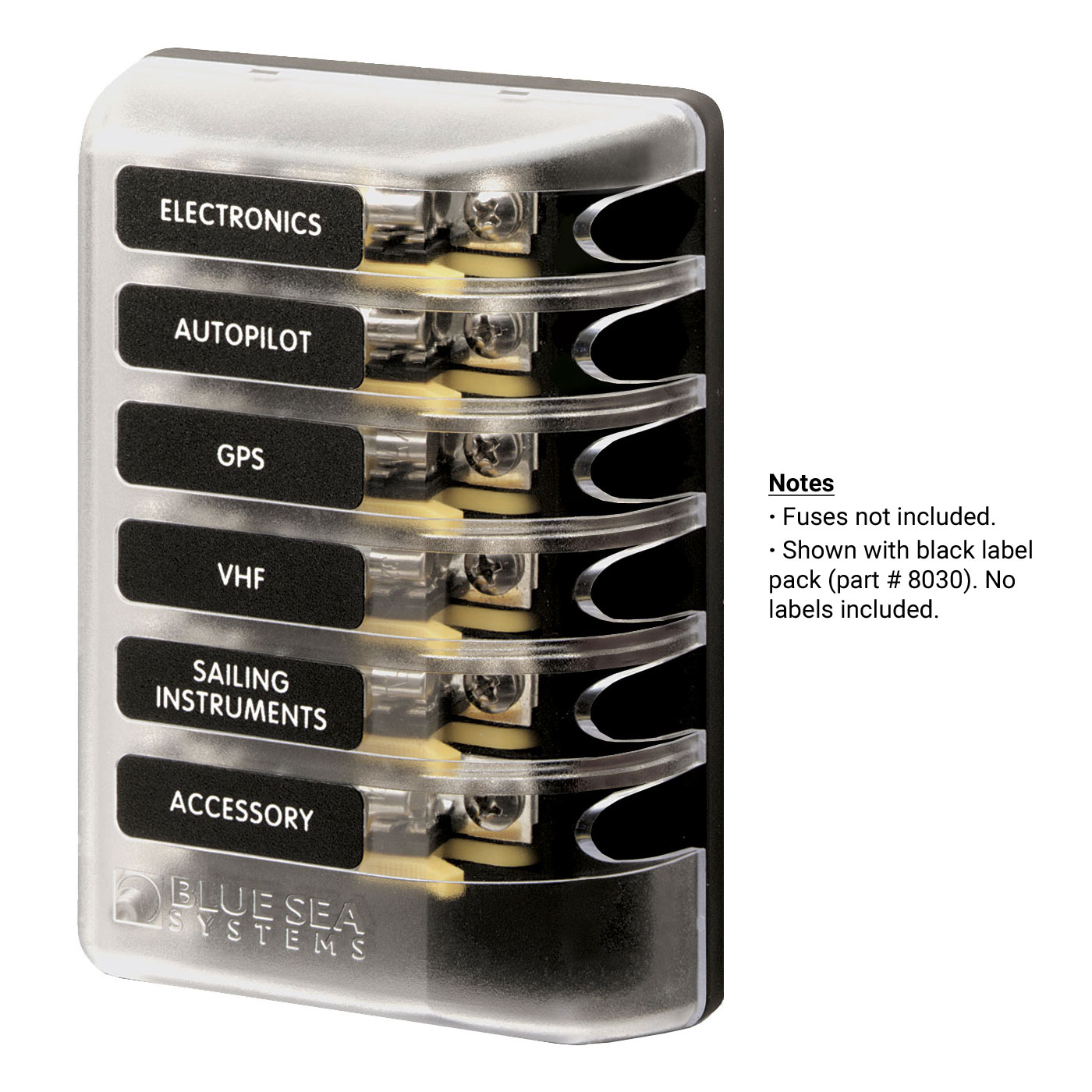

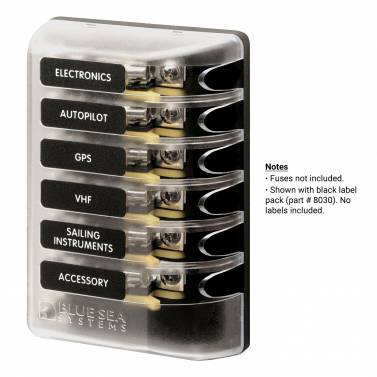

Blue Sea 5018 ST Glass 6 Circuit Fuse Block with Cover
By Blue Sea
By Blue Sea
| Part # | 5018 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.7 lbs |
$33.41 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems ST Glass 6 Circuit Fuse Block with Cover. Part number 5018. Innovative design allows for labeling, spare fuse storage, and easy fuse removal.
Features
Specifications
Features
- Clear insulating cover with label recesses for accepting Large Format Labels(not included, use Blue Sea part # 8030)
- Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
- Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
- Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses
Specifications
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Base Material: Reinforced Polycarbonate
- Cover Material: Polycarbonate
- Screw Terminal Type: #8-32 with Captive Star Lockwasher
- Weight: 0.48lb (0.22 kg)
$33.41 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.5 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 5018 |
| Model | Blue Sea 5018 |
| Part # | 5018 |
| Product Type | Fuse Block |
| Shipping Dims | 7" x 4" x 3" |
| Shipping Wt | 0.7 lbs |
| UPC | 632085050184 |
| Warranty | 5 Year |
