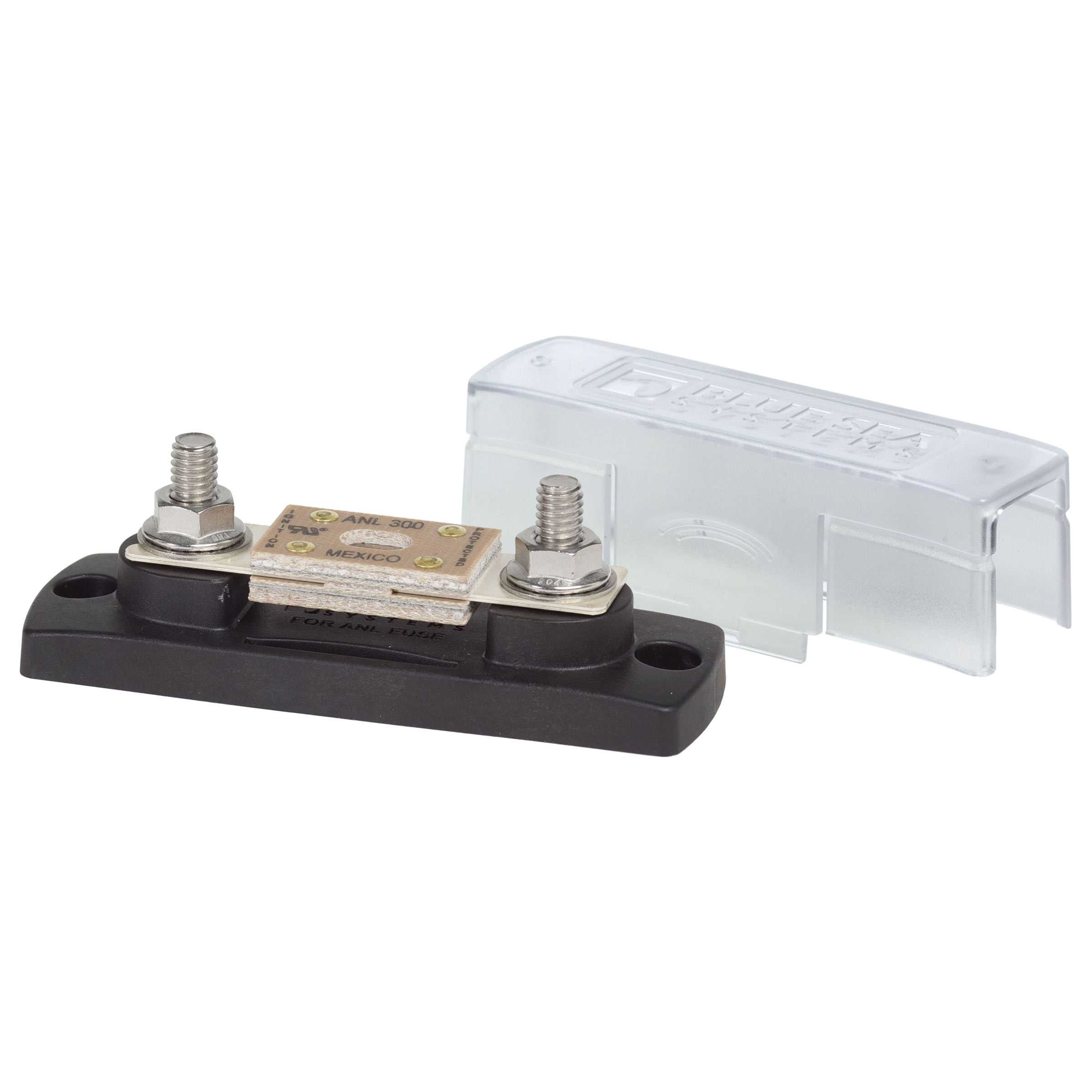

Blue Sea 5005 ANL DC Fuse Block 35A-300A Insulating Cover Marine Boat
By Blue Sea
By Blue Sea
| Part # | 5005 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.5 lbs |
$26.03 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
15 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems ANL fuse block. Part number 5005. Provides broad range circuit protection. Includes insulating cover. Accepts ANL, ANN, CNL, and CCN type fuses from 35 to 300 amps DC. Fuse sold separately.
Features
Specifications
Features
- Accepts 5/16" (M8) ring terminals
- For use on systems up to 32 Volts DC
- Swing out design allows replacement of the fuse without removing fasteners
- Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
- UL 94-V0 base resists high heat
- Insert molded studs ensure secure fuse mounting
- Insulating cover satisfies ABYC/USCG requirements
- Cover breakouts allow wire access in any direction
- Fuse sold separately
Specifications
- Maximum Voltage: 32V DC
- Base Material: Reinforced Polycarbonate
- Fuse Mounting Blocks: Tin-Plated Copper
- Maximum Cable Size: 2/0 AWG
- Maximum Torque: 110 in-lb (12.43 Nm)
- Terminal Stud Size: 5/16" - 18 (M8)
- Weight: 0.35lb (0.16 kg)
$26.03 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
15 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Black |
| Made In | Mexico |
| Item Weight | 0.3 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 5005 |
| Model | Blue Sea 5005 |
| Part # | 5005 |
| Product Type | Fuse Block |
| Shipping Dims | 7" x 4" x 3" |
| Shipping Wt | 0.5 lbs |
| UPC | 632085050054 |
| Warranty | 5 Year |
