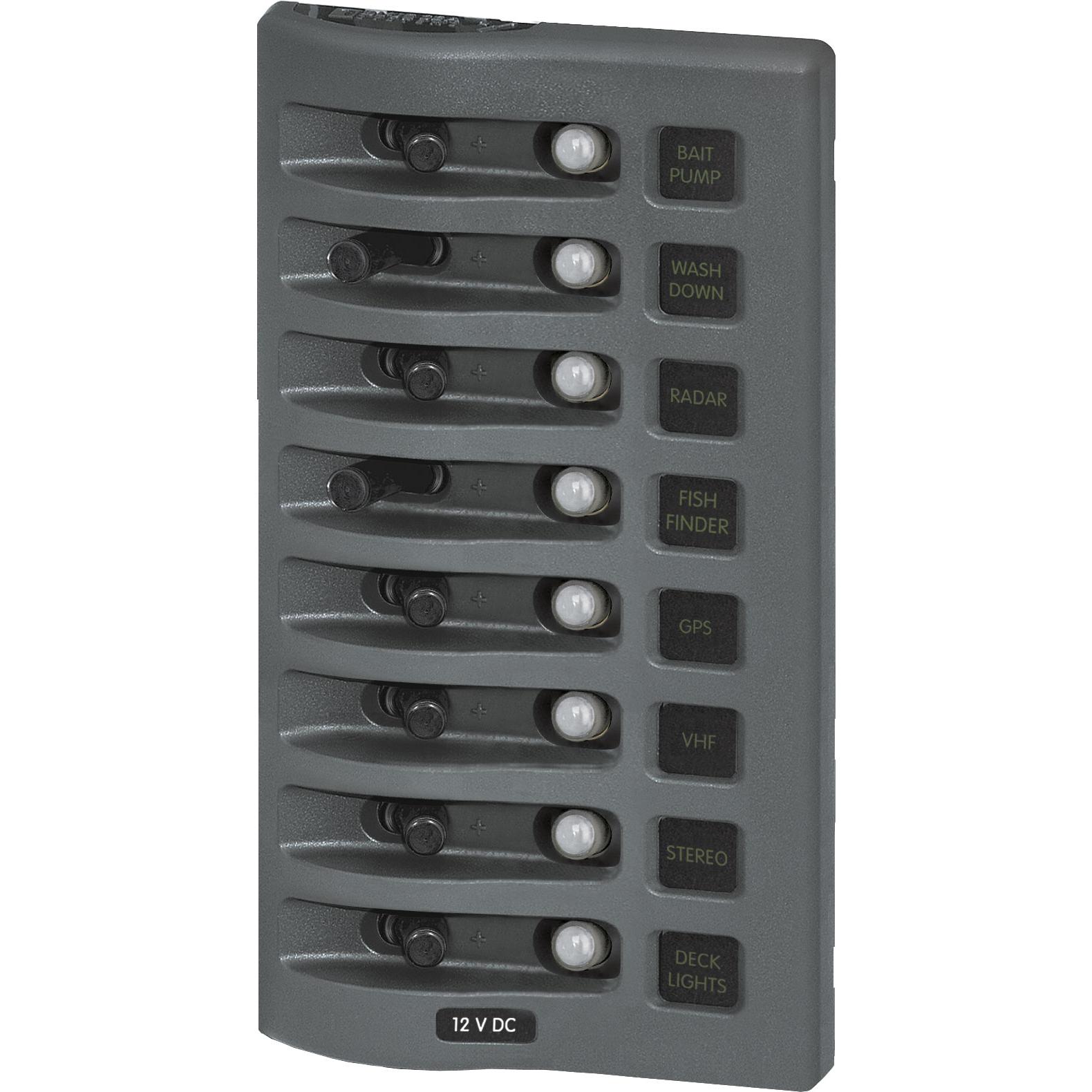

Blue Sea 4378 WeatherDeck 12V DC Waterproof Circuit Breaker Panel, Gray 8 Pos
By Blue Sea
By Blue Sea
| Part # | 4378 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 3 lbs |
$160.13 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 4378 WeatherDeck 12V DC Waterproof Circuit Breaker Panel, Gray 8 Pos
Features
Specifications
Features
- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Available in 4 and 6 circuit models
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
- Includes 4215 Waterproof DC 30 Black Square Label Set
Specifications
- Weatherproof: Waterproof
- Positions: 8
- Nominal Voltage: 12V DC
24V DC - Circuit Protection: Circuit Breaker
- Maximum Amperage: 15A @ 12V DC (per circuit)
9A @ 24V DC (per circuit) - Panel Cumulative Rating: 45A
- Backlit Label: Green LED
- Backlighting Amperage: 10mA /Illuminated Circuit
- Backlighting Voltage: 12 or 24V DC
- Material: Reinforced Polycarbonate
- Height: 7.70in (195.58 mm)
- Width: 4.25in (107.95 mm)
- Depth: 3.50in (88.9 mm)
- Weight: 1.83lb (0.83 kg)
- Weight: 1.70lb (0.77 kg)
$160.13 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 1.7 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 4378 |
| Part # | 4378 |
| Product Type | DC Panel |
| Shipping Dims | 18" x 6" x 6" |
| Shipping Wt | 3 lbs |
| UPC | 632085043780 |
| Warranty | 5 Year |
