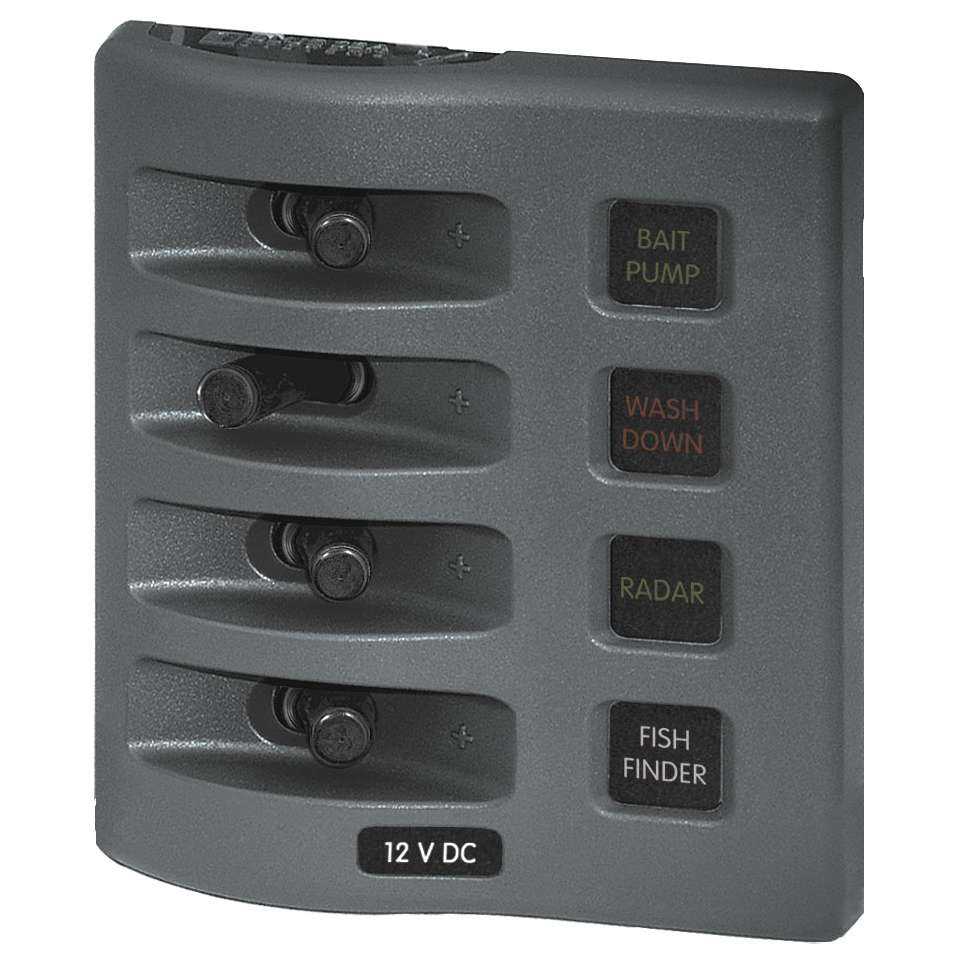

New Blue Sea Systems WeatherDeck 12V DC Waterproof Fuse Panel - Gray 4 Positions. Part number 4304.

Features

• Rated IP67 - Temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting circuit for remote switching and dimming
• Available in 2, 4, 6, and 8 circuit models
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.
• Includes 4215 Waterproof DC 30 Black Square Label Set

Specifications

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12V DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12V DC (per circuit)
• Panel Cumulative Rating: 60A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA /Illuminated Circuit
• Backlighting Voltage: 12 or 24V DC
• Material: Reinforced Polycarbonate
• Height: 4.30in (109.22 mm)
• Width: 3.88in (98.55 mm)
• Depth: 2.50in (63.5 mm)
• Weight: 0.90lb (0.41 kg)
