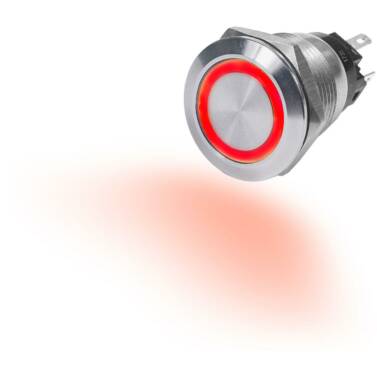

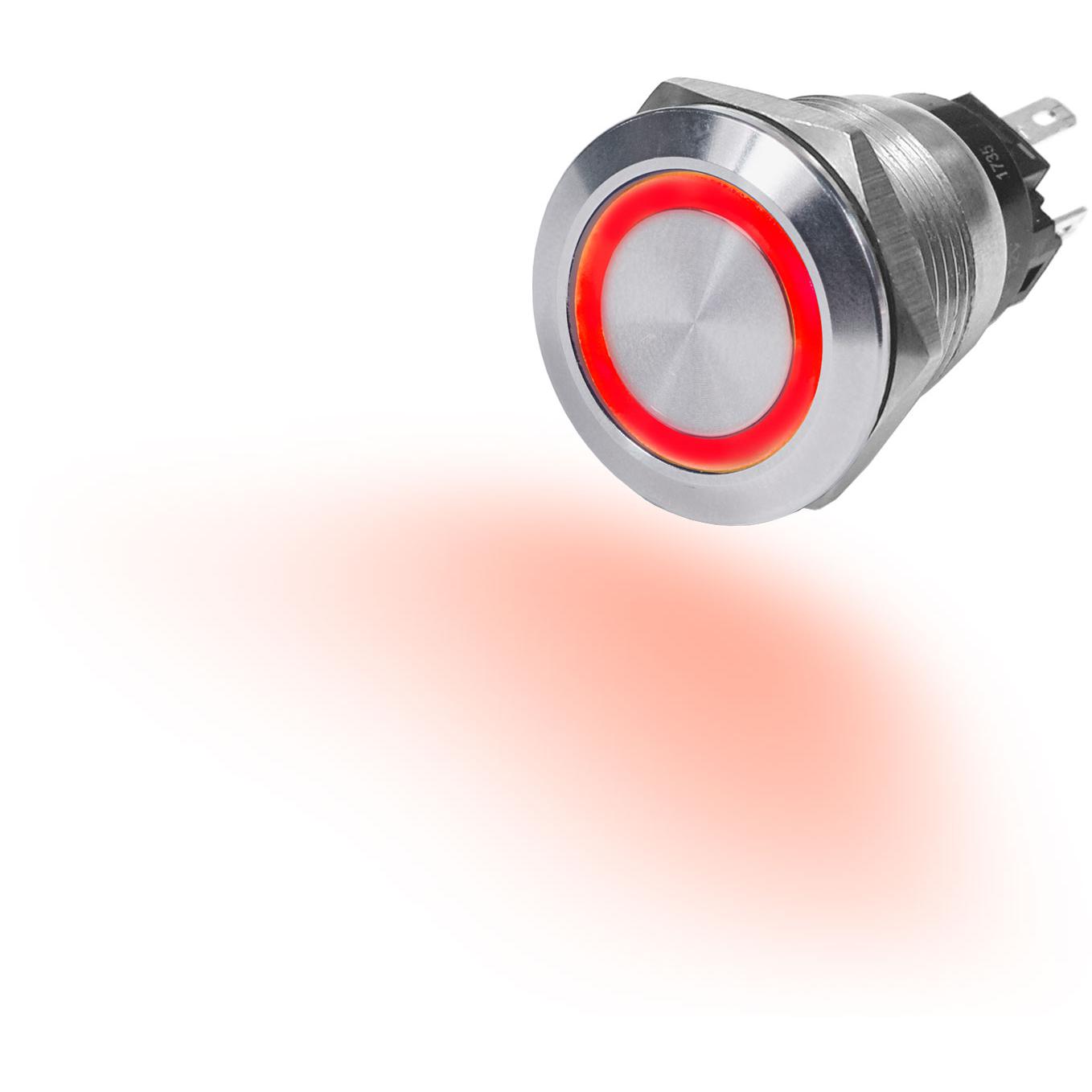

Blue Sea 4162 Marine 10A Push Button LED Ring Switch OFF-ON Red
By Blue Sea
By Blue Sea
| Part # | 4162 |
|---|---|
| Warranty | 5 Year |
| Shipping Wt | 0.4 lbs |
$22.74 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
Blue Sea 4162 Marine 10A Push Button LED Ring Switch OFF-ON Red
Features
Specifications
Features
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Available in Blue & Red
- Available in momentary and non-momentary
- Installs with .110inch quick connects (included in retail package)
Specifications
- Action: OFF-ON
- Amperage: 10A @ 12V DC Resistive
3A @ 12V Inductive - Nominal Voltage: 12V DC
- Maximum LED Operating Current: 20mA
- Minimum Operating Temperature: -30 degree C
- Maximum Operating Temperature: 70 degree C
- Minimum Storage Temperature: -55 degree C
- Maximum Storage Temperature: 85 degree C
- Illumination: Independent - Separate contacts for LED power
- Max Panel Thickness: 0.31in (7.87 mm)
- Mounting Hole: -3/4 " (19mm)
- Switching Cycles: 40,000
- Termination: 5 - 0.110inch Quick Connect terminals
- Weight: 0.20lb (0.09 kg)
$22.74 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | China |
| Item Weight | 0.2 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 4162 |
| Part # | 4162 |
| Product Type | Push Button Switch |
| Shipping Dims | 6" x 4" x 4" |
| Shipping Wt | 0.4 lbs |
| UPC | 632085041625 |
| Warranty | 5 Year |
