Blue Sea 3000 HD-Series Heavy Duty On Off Battery Switch DC Marine Boat 2 Pos
By Blue Sea
By Blue Sea
| Part # | 3000 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$75.74 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

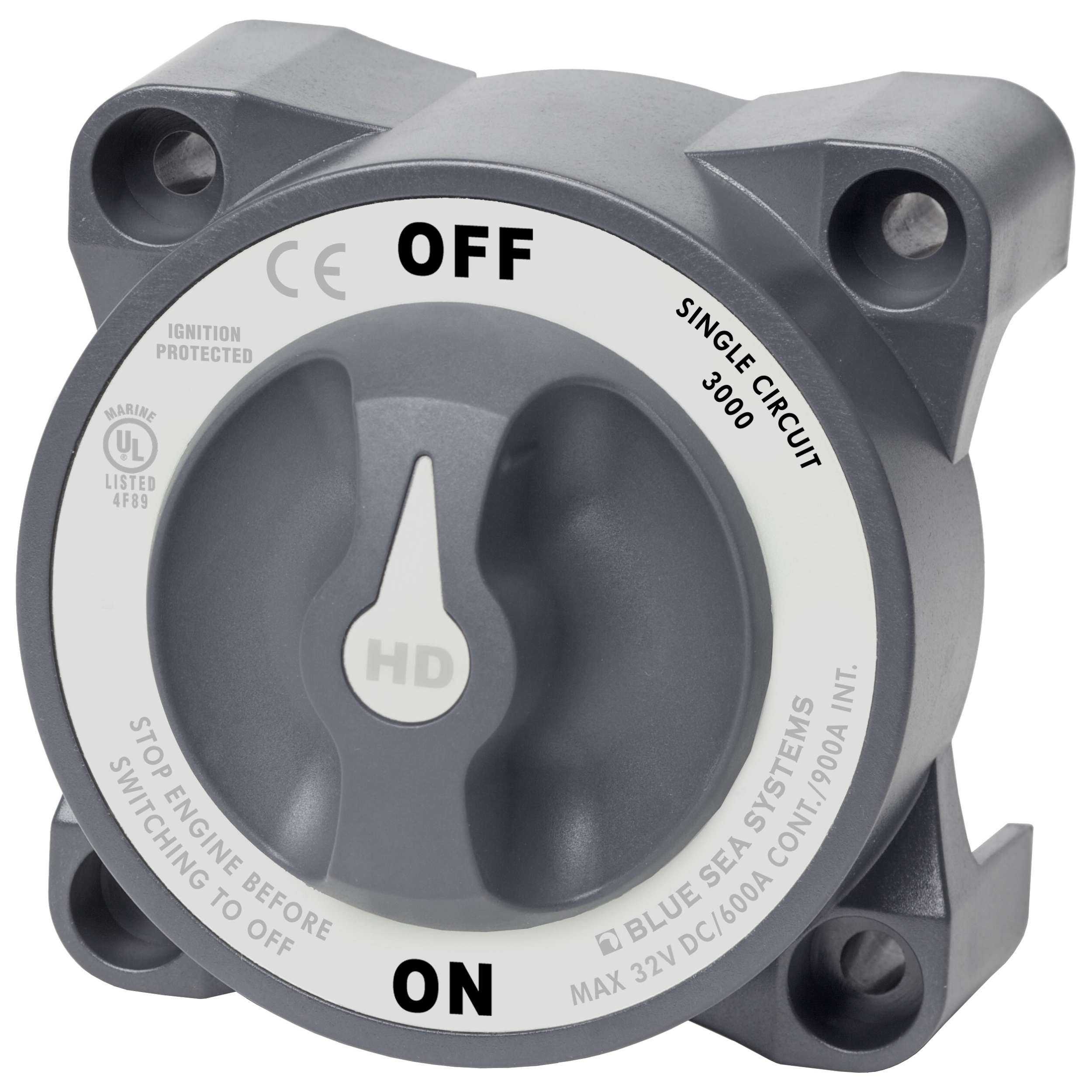

New Blue Sea Systems HD-Series heavy duty on/off battery switch. Part number 3000. Switches a single battery to a single load group.
Features
Specifications
Features
- Ignition protected-safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm sq) battery cables
Specifications
- Switch Type: Single Circuit ON-OFF
- Color: Grey
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 220 in-lb (24.86 Nm)
- Continuous Rating: 600A
- Intermittent Rating: 900A (5 min)
- Cranking Rating 10 sec: 2750A
- Cranking Rating 1 min: 1325A
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
- Cable Quantity to Meet Ratings: Two Cables
- Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
- Mounting Holes: Accept 1/4" (M6) Screw
- Terminal Stud Size: 1/2" (M12)
- Weight: 1.30lb (0.59 kg)
$75.74 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Black |
| Made In | Mexico |
| Item Weight | 1.3 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 3000 |
| Model | Blue Sea 3000 |
| Part # | 3000 |
| Product Type | On/Off Battery Switch |
| Shipping Dims | 9" x 7" x 4" |
| Shipping Wt | 2 lbs |
| UPC | 632085030001 |
| Warranty | 5 Year |
