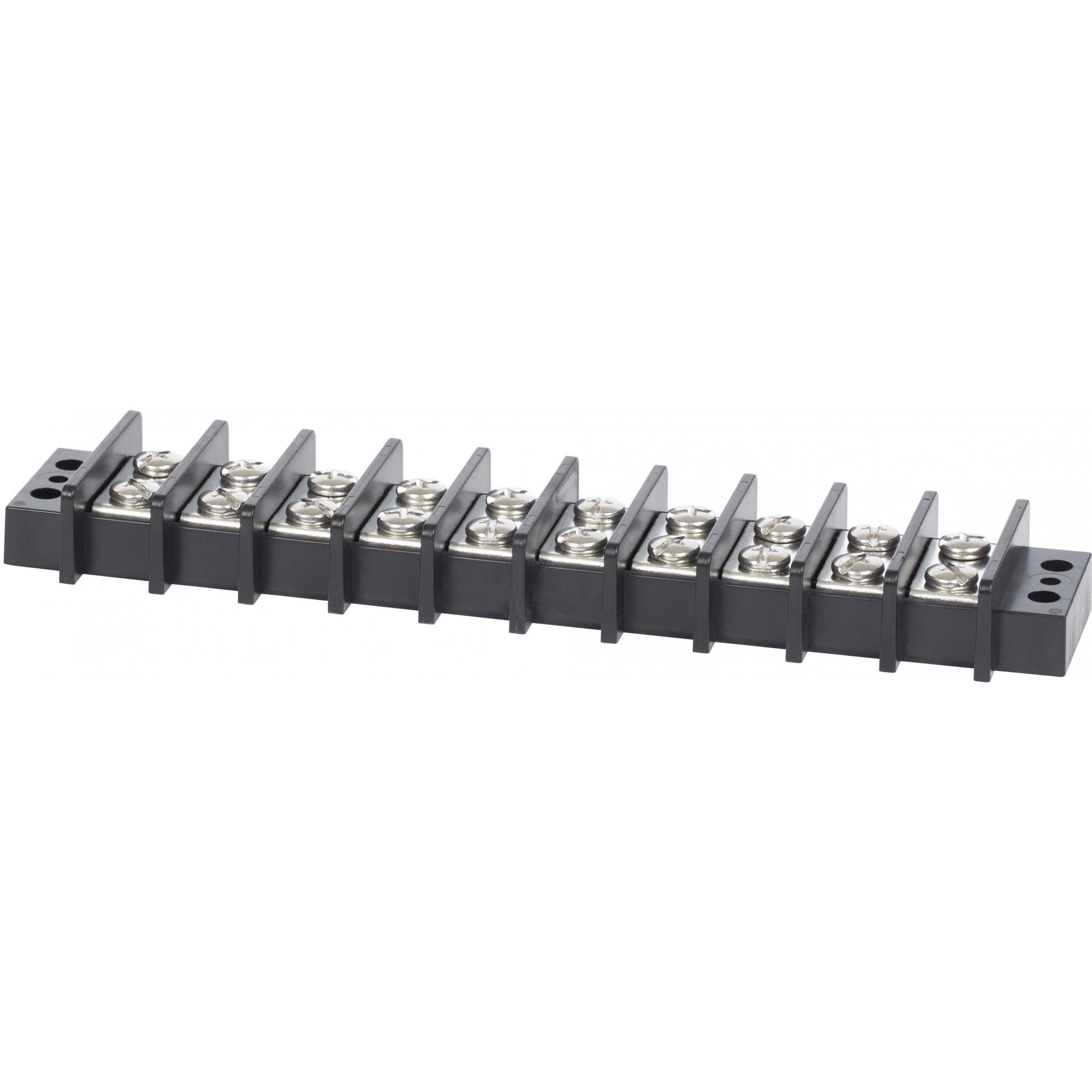

Blue Sea 2610 Marine Terminal Block 65A - 10 Circuit
By Blue Sea
By Blue Sea
| Part # | 2610 |
|---|---|
| Warranty | 5 Year |
| Shipping Wt | 0.8 lbs |
$26.06 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
Blue Sea 2610 Marine Terminal Block 65A - 10 Circuit
Features
Specifications
Features
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications
- Circuits: 10
- Length: 8.01in (203.45 mm)
- Maximum Voltage: 600V AC/DC
- Continuous Rating: 65A
- Base Material: UL 94 V0, PC
- Bus Material: Nickel-Plated Brass
- Mounting Screw: #10 [M5]
- Screw Material: Stainless Steel
- Screw Size: #10-32
- Screw Terminal Torque: 19 in-lb (2.15 Nm)
- Terminal Screws: M5
- Wire Terminal Size: #10 [M5]
- Weight: 0.52lb (0.24 kg)
- Weight: 0.52lb (0.24 kg)
$26.06 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | China |
| Item Weight | 0.52 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 2610 |
| Part # | 2610 |
| Product Type | Terminal Block |
| Shipping Dims | 8" x 6" x 2" |
| Shipping Wt | 0.8 lbs |
| UPC | 632085026103 |
| Warranty | 5 Year |
