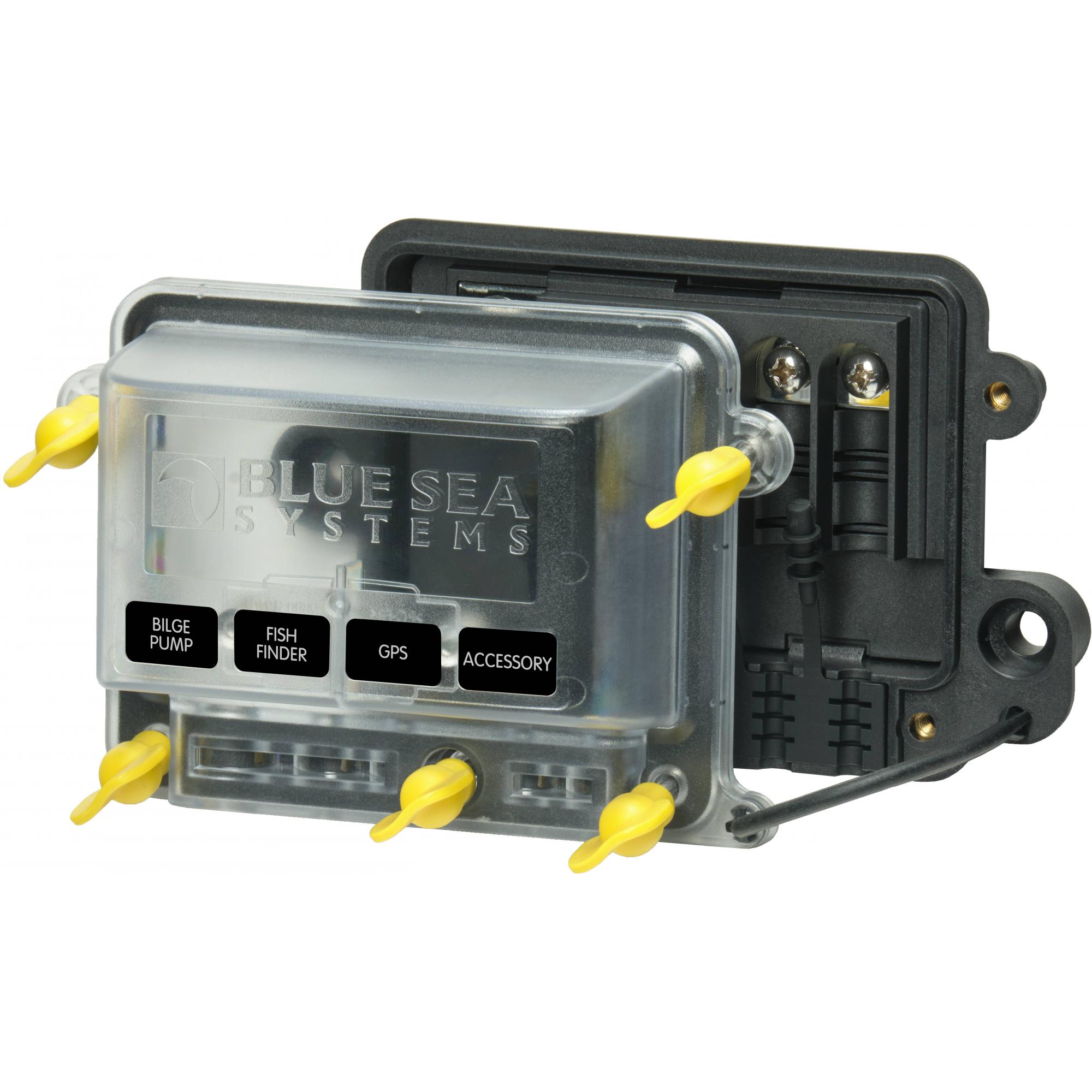

Blue Sea 2356100 Marine Water-Resistant - 100A Busbar: Manual Cover

Overview
Provides secure water-resistant bussing for harsh environments.

Features

• Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools.
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used
• Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
• Ideal for positive distribution and for the collection of negative or AC ground circuits
• 2356100 meets ABYC/USCG insulation requirements
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Small format standard and custom labels available
• Wing-screws designed for tool-free installation of cover to meet ABYC compliance

Specifications

• Cover: Yes
• Maximum Voltage: 300V AC
  48V DC
• Terminal Stud: 1 x #10-32
• Continuous Rating: 100A AC
  100A DC
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Accepts 1/4" (6mm) Screws
• Terminal Screws: 4 x #8-32
• Wire Size: (1) 8 AWG to 4 AWG - Input
  (4) 16 AWG to 10 AWG - Load
