Blue Sea 2314 Marine Common 100A Mini BusBar - 5 Gang with Cover
By Blue Sea
By Blue Sea
| Part # | 2314 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.5 lbs |
$18.39 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
10 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

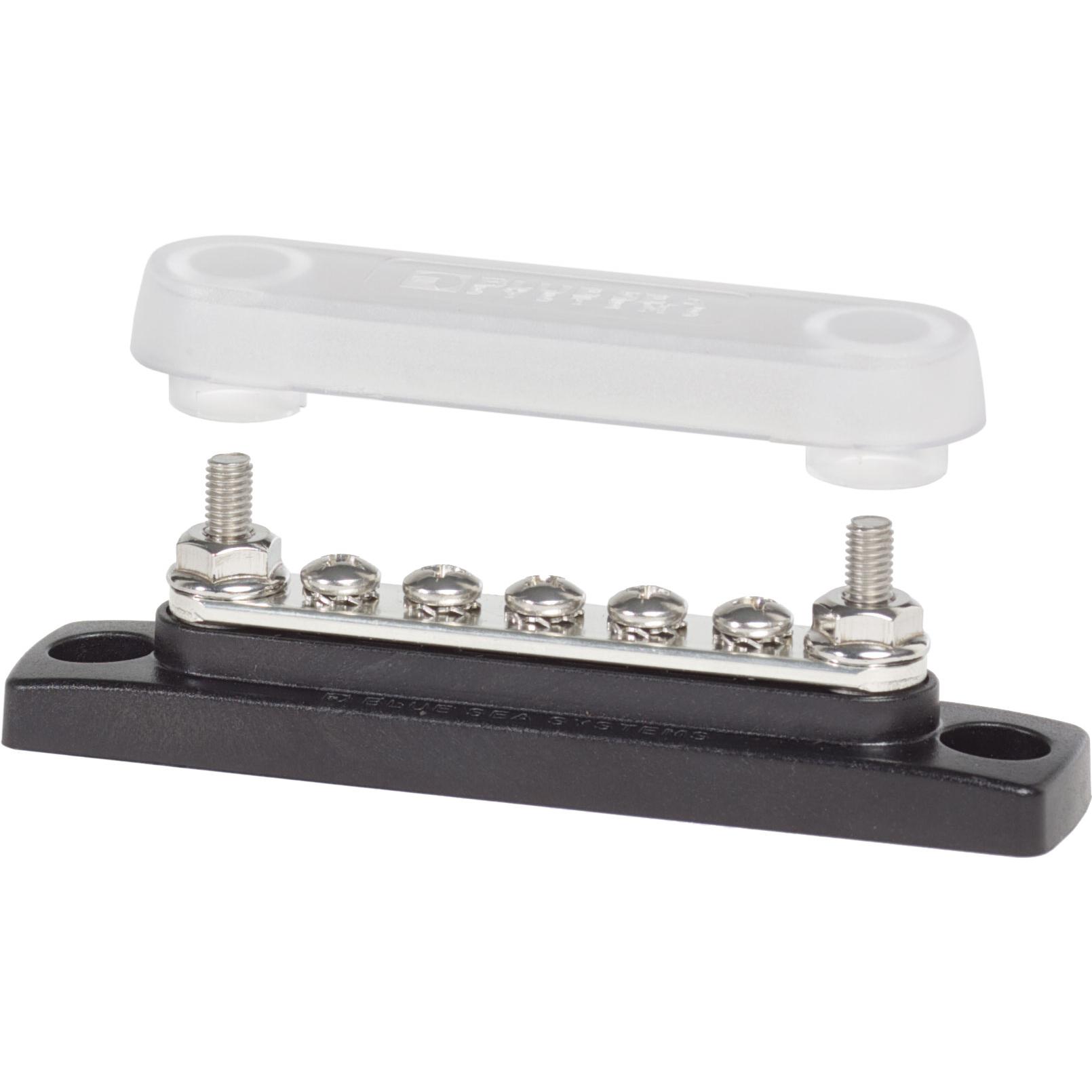

Blue Sea 2314 Marine Common 100A Mini BusBar - 5 Gang with Cover
Features
Specifications
Features
- Great for limited space applications
Specifications
- Maximum Voltage: 300V AC
48V DC - Number of Screw Terminals: 5
- Number of Terminal Studs: 2
- Terminal Type: #10-32 Stud
#8-32 Screw - Continuous Rating: 100A
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material: Tin-Plated Copper CDA 110/ UNS11000
- Cover Material: Clear Polycarbonate
- Screw Terminal Torque: 15 in-lb (1.69 Nm)
- Stud Torque: 18 in-lb (2.03 Nm)
- Weight: 0.18lb (0.08 kg)
$18.39 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
10 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.18 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 2314 |
| Part # | 2314 |
| Product Type | BusBar |
| Shipping Dims | 8" x 6" x 2" |
| Shipping Wt | 0.5 lbs |
| UPC | 632085023140 |
| Warranty | 5 Year |
