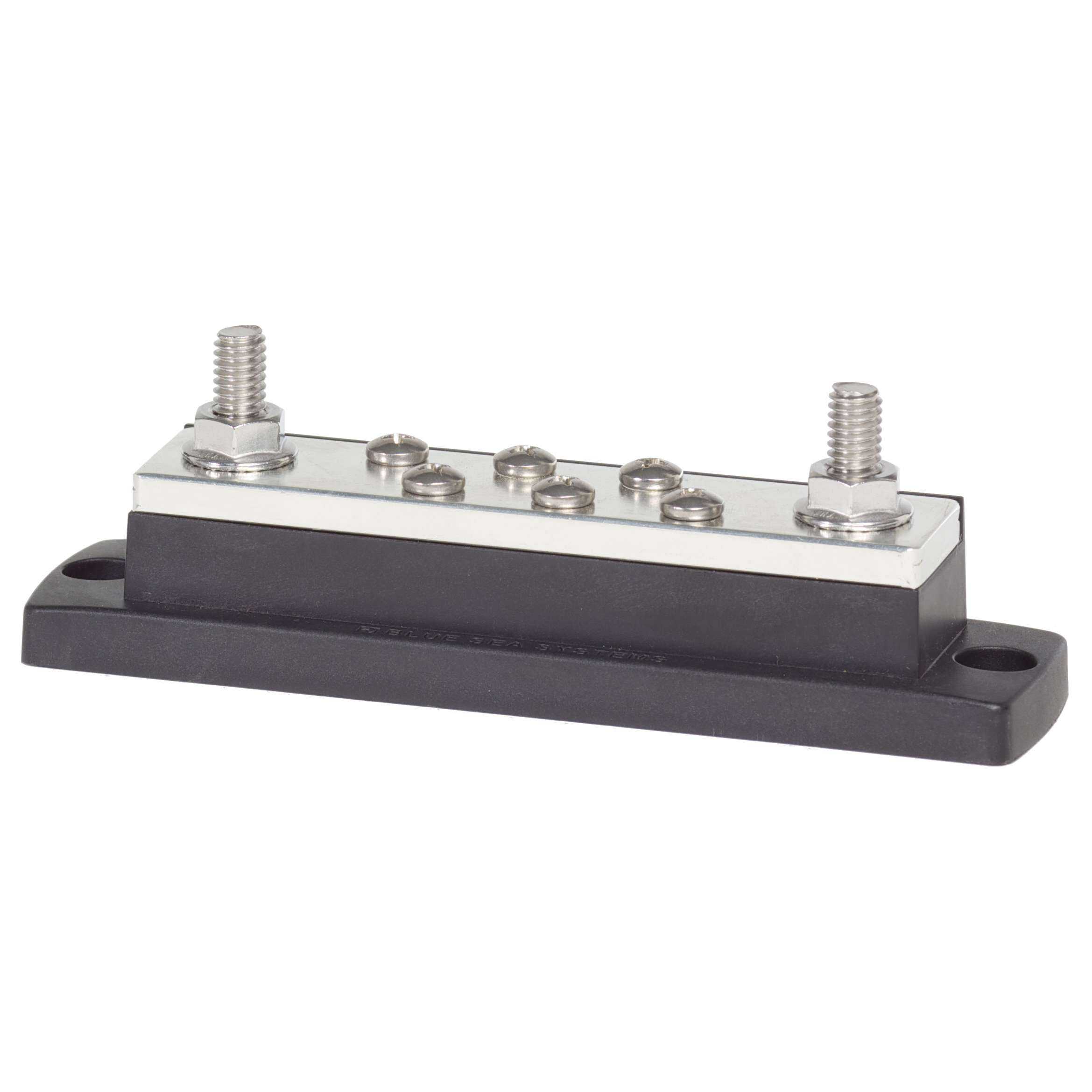

Blue Sea 2128 MaxiBus 250A BusBar Two 5/16"-18 Studs and Six #10-24 Screws Boat
By Blue Sea
By Blue Sea
| Part # | 2128 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 1 lbs |
$37.68 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
New Blue Sea Systems MaxiBus 250A BusBar - Two 5/16"-18 Studs and Six #10-24 Screws. Part number 2128. Busbars are used to consolidate multiple wires or feed multiple circuits.
Features
Features
-
Busbars are used to consolidate multiple wires or feed multiple circuits
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
- Maximum Voltage: 300V AC, 48V DC
- Number of Screw Terminals: 6
- Number of Terminal Studs: 2
- Terminal Type: #10-24 Screw, 5/16"-18 Stud
- Continuous Rating: 250A
- Base Material: UL 94-V0
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
- Weight: 0.80lb (0.36 kg)
Specifications
$37.68 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.8 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 2128 |
| Model | Blue Sea 2128 |
| Part # | 2128 |
| Product Type | BusBar |
| Shipping Dims | 6" x 3" x 2" |
| Shipping Wt | 1 lbs |
| UPC | 632085021283 |
| Warranty | 5 Year |
