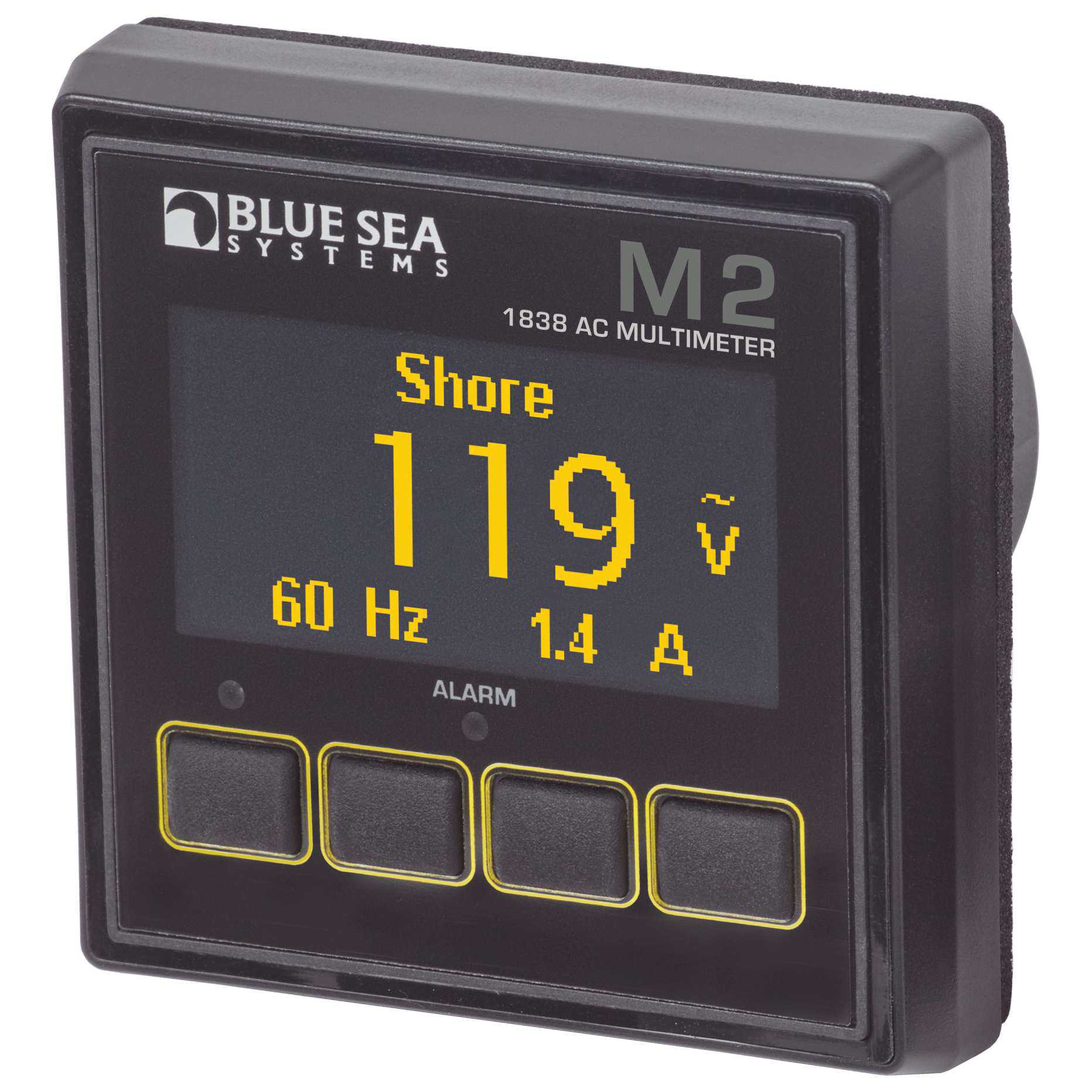

New Blue Sea Systems M2 AC multimeter. Part number 1838. Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage, and Hz (measures 2 voltages and 2 circuits).

Features

• Auto-dimming, bright OLED display is easy to read
• Easy to adjust
• 80dB alarm on all models
• Isolated MOSFET relay

Specifications

• Meter: Current, Frequency, Power, Voltage
• Function: 50 to 250V, to 300A
• Resolution: 1V AC
• Alarms: High/Low Current, High/Low Frequency, High/Low Voltage
• Current Accuracy: +/- 2.0%
• Display Size: 55mm x 28mm
• Frequency Range: 40-90Hz
• Frequency Resolution: 1Hz
• Input Voltage: 7-70V DC
• Maximum Power Consumption: 1.00 Watt
• Minimum Power Consumption: 0.3 Watt
• Power Range: 0-45kW
• Power Resolution: 10W (0-9990W), 0.1kW (10-45kW)
• Voltage Accuracy: +/- 2.0%
