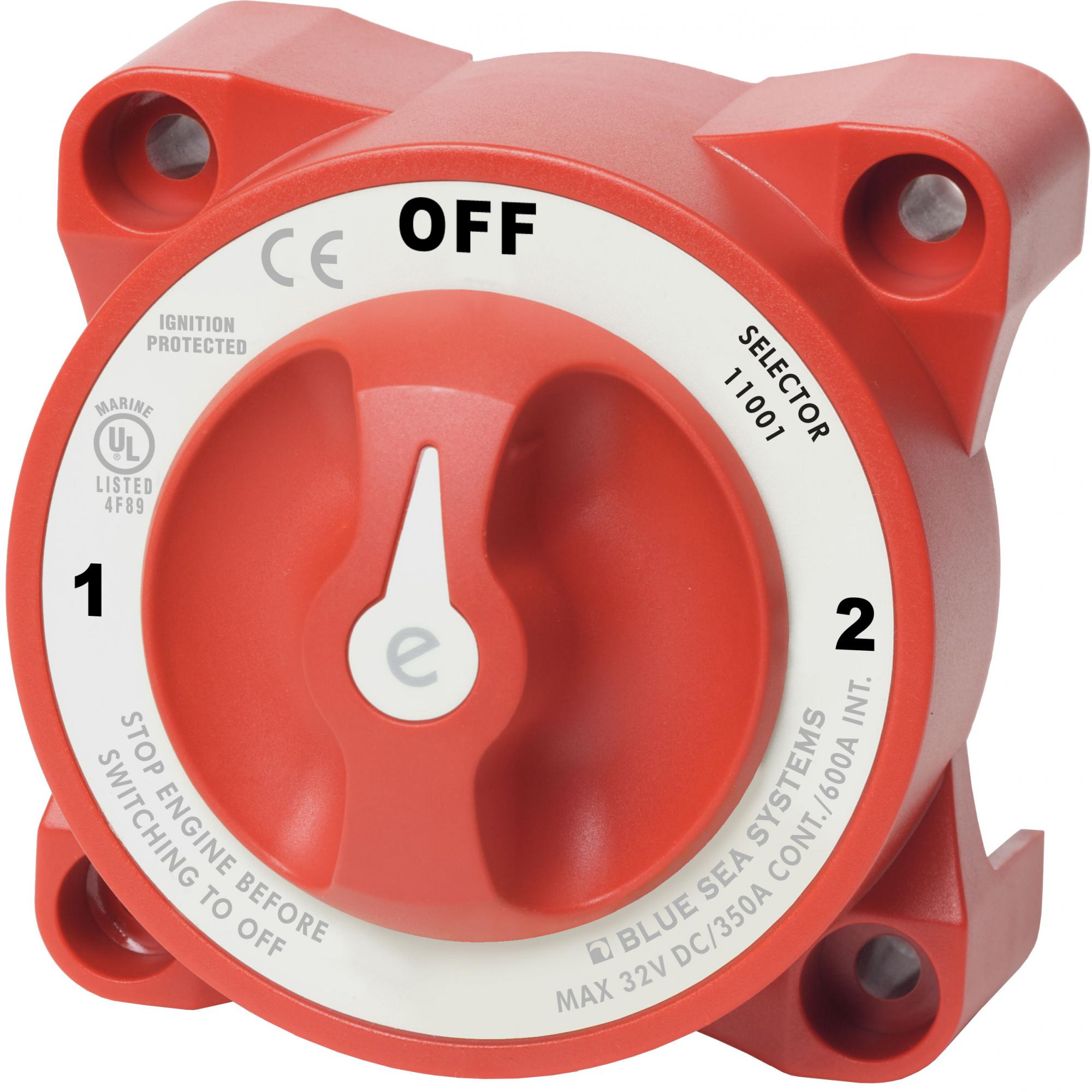

Blue Sea 11001 Marine e-Series Selector 3 Position Battery Switch with AFD
By Blue Sea
By Blue Sea
| Part # | 11001 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$51.59 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
Blue Sea 11001 Marine e-Series Selector 3 Position Battery Switch with AFD
Overview
Switches a single battery to a single load group.
Features
Specifications
Overview
Switches a single battery to a single load group.
Features
- Includes AFD (Alternator Field Disconnect)
- Ignition protected-safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications
- Switch Type: Selector 3 Position
- Color: Red
- Switch Positions: 3
- Battery Combine: No
- Alternator Field Disconnect: Yes
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 350A
- Intermittent Rating: 600A (5 min)
- Cranking Rating 30 sec: 1200A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept 1/4" (M6) Screw
- Stud Material: Tinned Copper
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 1.15lb (0.52 kg)
- Weight: 1.30lb (0.59 kg)
$51.59 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 1.3 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 11001 |
| Part # | 11001 |
| Product Type | e-Series Battery Switch |
| Shipping Dims | 10" x 7" x 3" |
| Shipping Wt | 2 lbs |
| UPC | 632085110017 |
| Warranty | 5 Year |
